Trunk Lamp Switch: Testing and Inspection

INSPECTION

TRUNK ROOM LAMP SWITCH
1. Disconnect the negative (-) battery terminal.
2. After opening the trunk, disconnect the 1P connector from the rear harness.

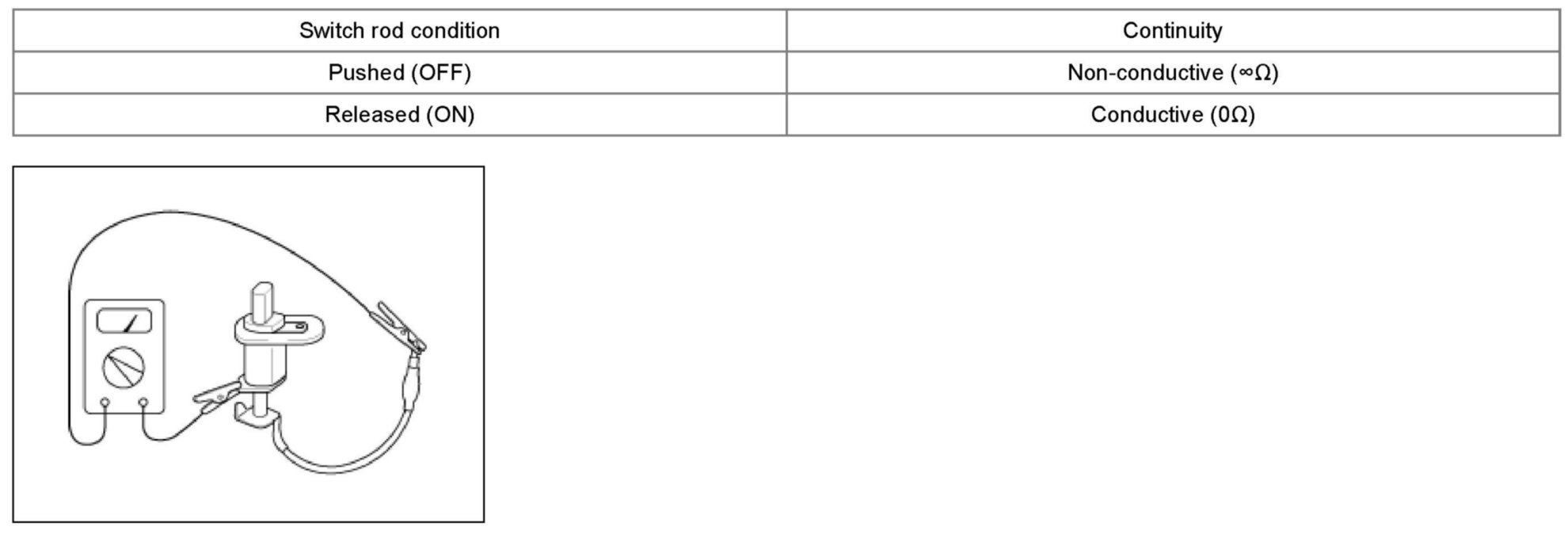

3. Check for continuity between the terminal and body while pushing the rod.
