Electrical Diagrams

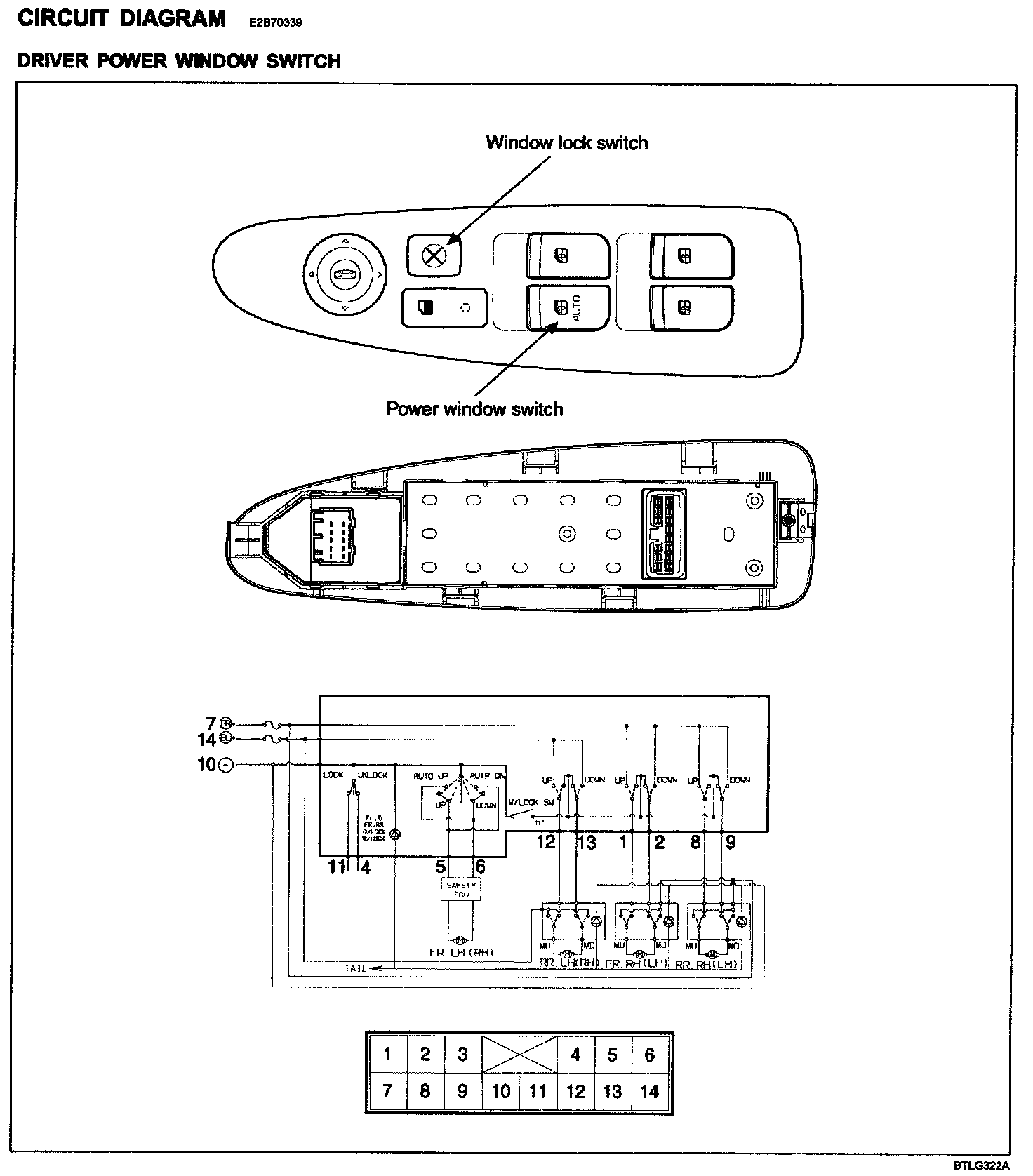

Driver Power Window Switch - Circuit Diagram:

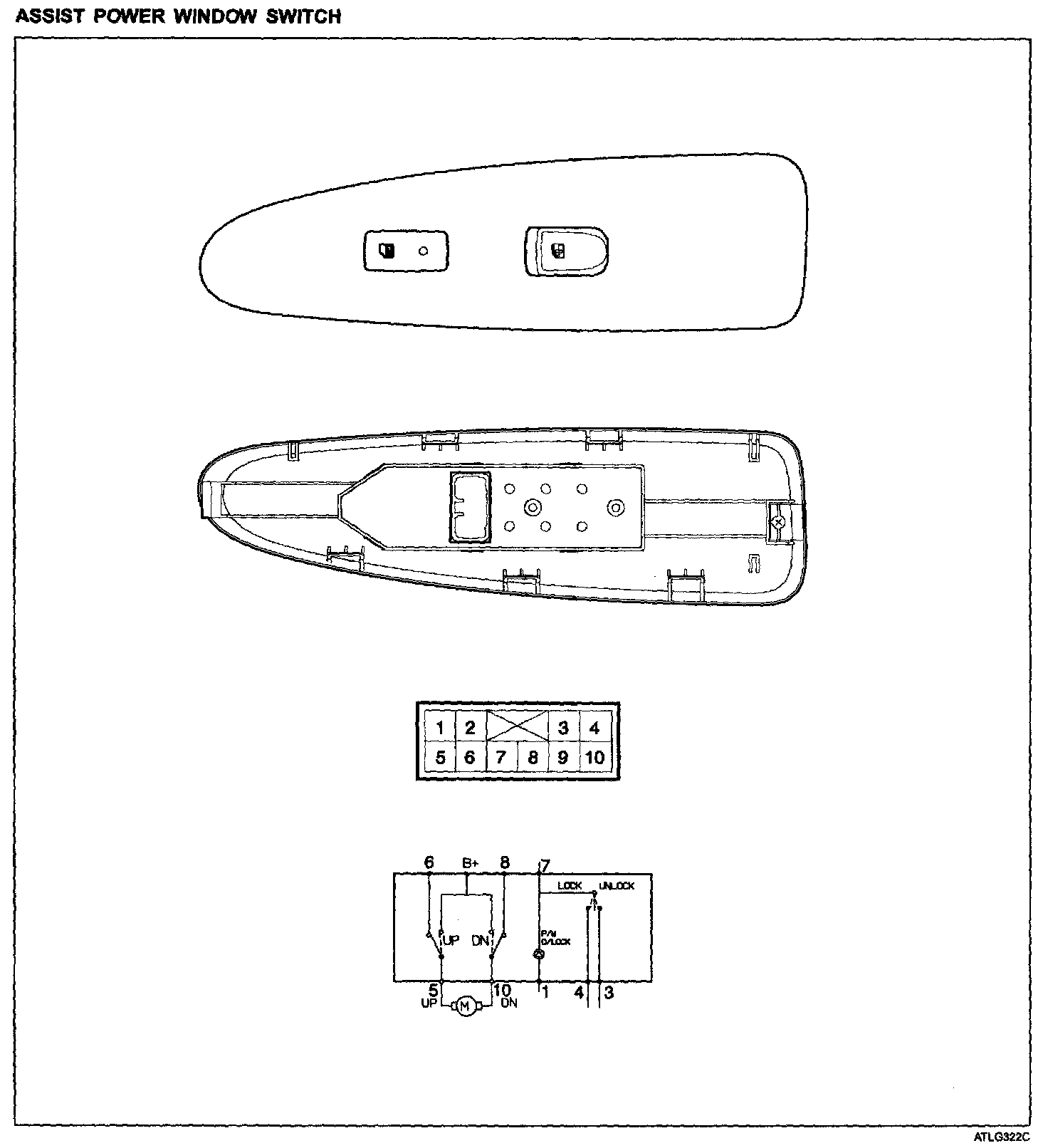

Assist Power Window Switch - Circuit Diagram:

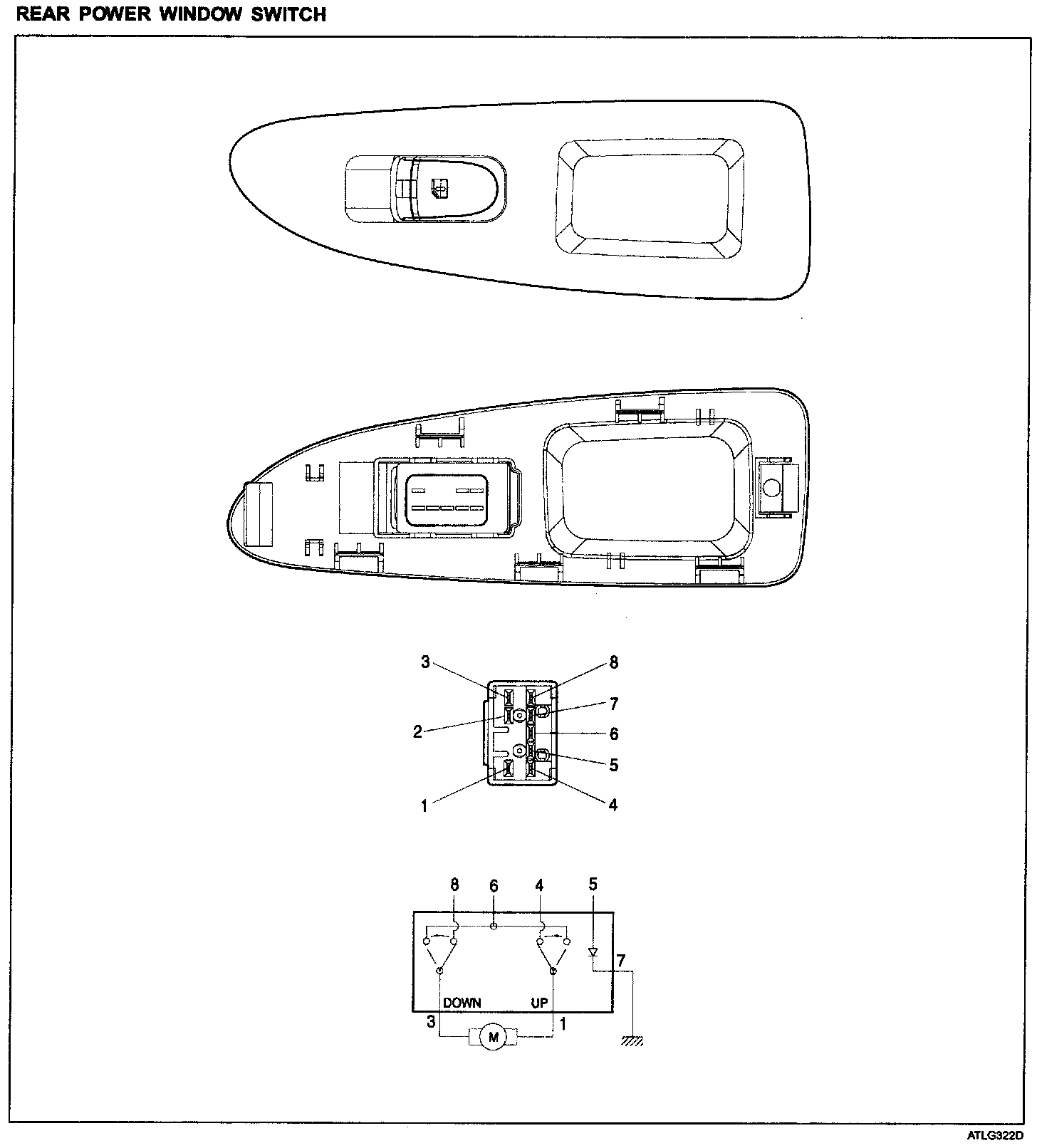

Rear Power Window Switch - Circuit Diagram:
