Combination Switch: Testing and Inspection
Multifunction SwitchINSPECTION

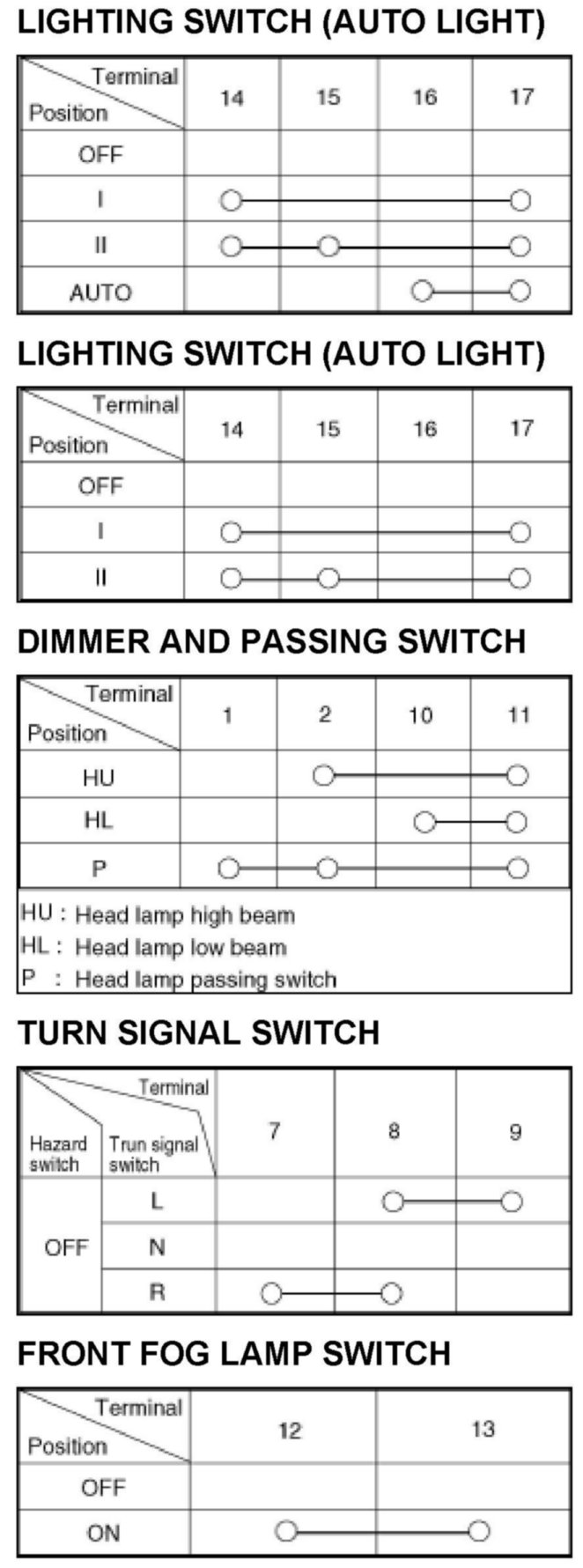

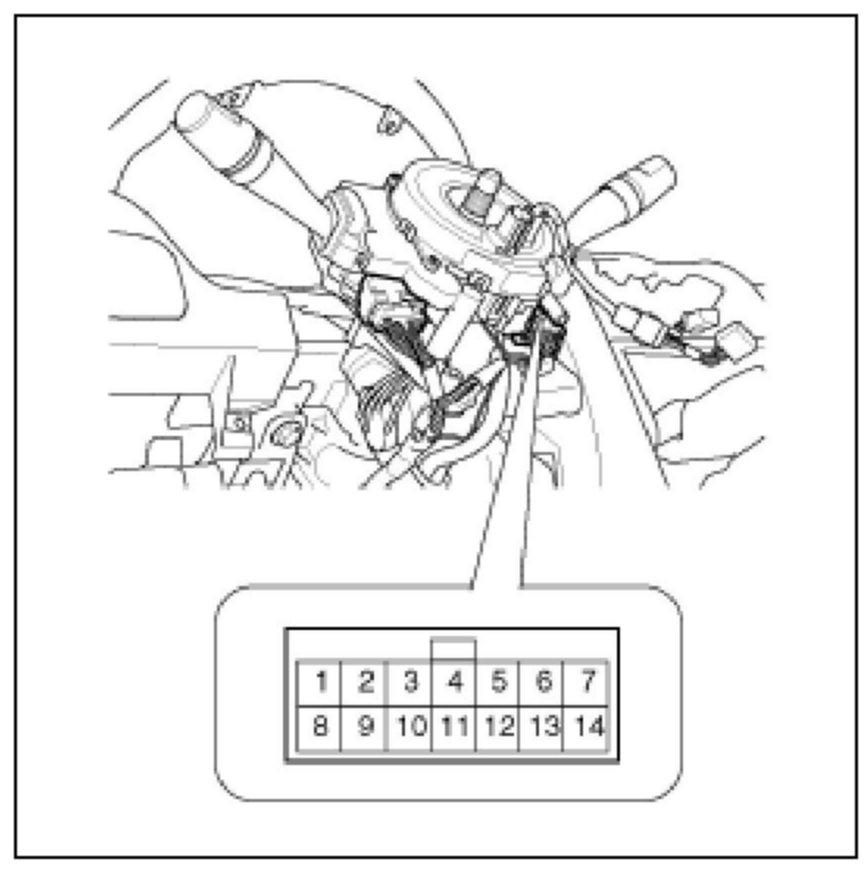

LIGHTING SWITCH INSPECTION
With the multi function switch in each position, make sure that continuity exists between the terminals. If continuity is not as specified, replace the multifunction switch.

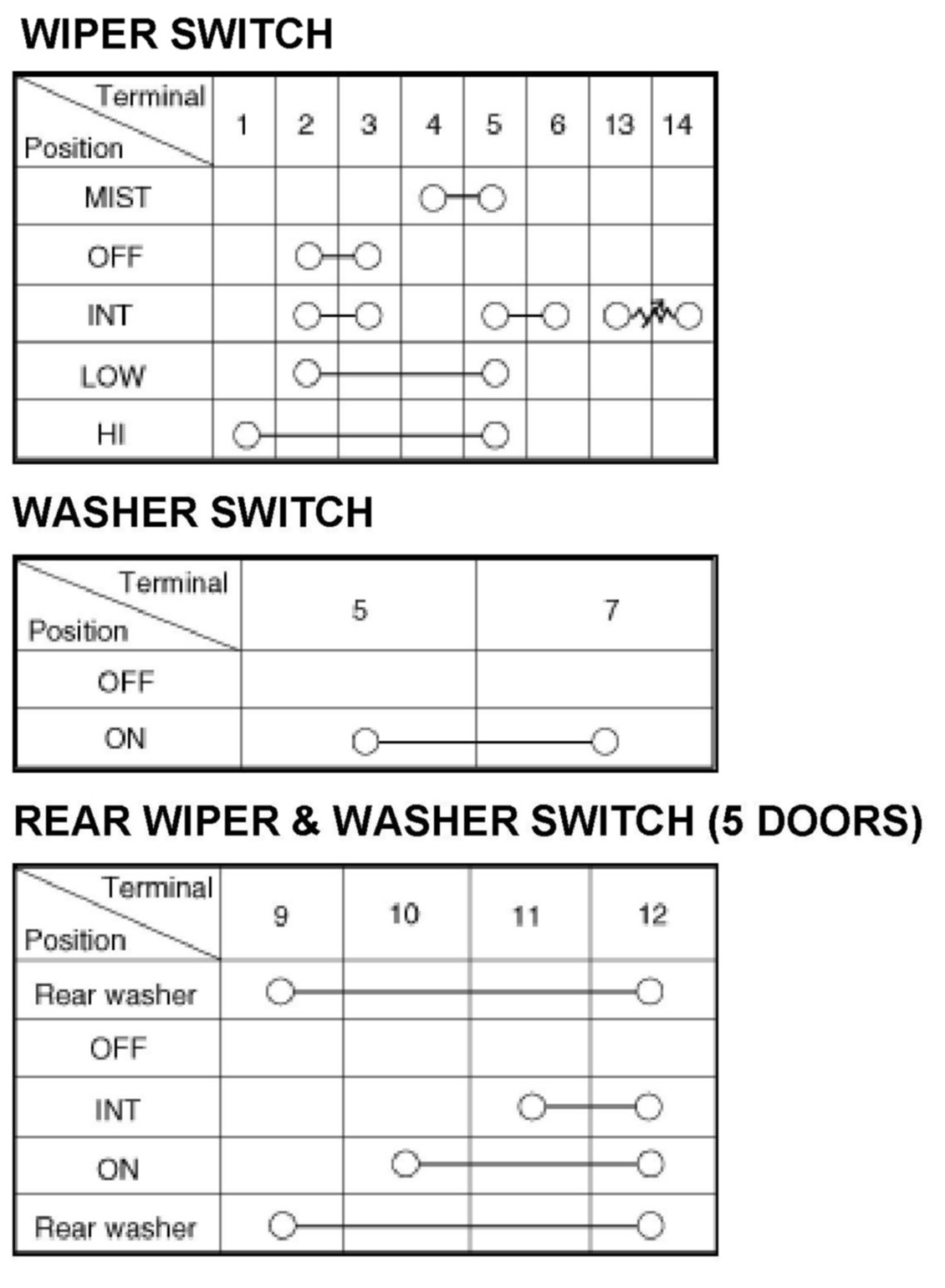

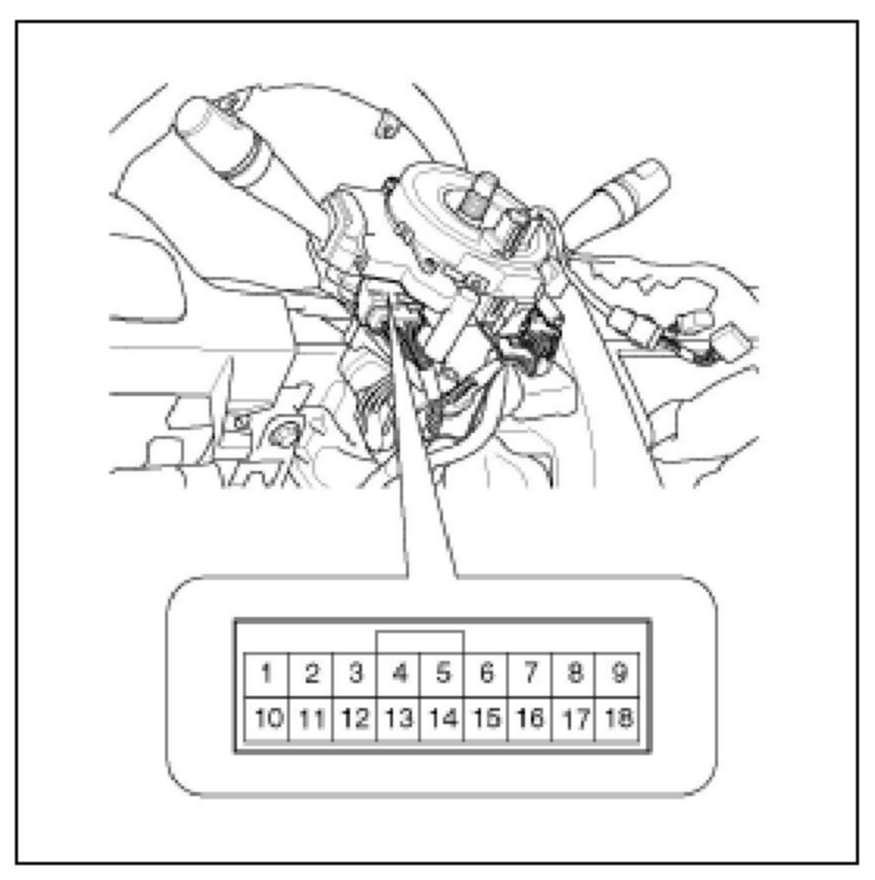

WIPER AND WASHER SWITCH INSPECTION
With the multi function switch in each position, make sure that continuity exists between the terminals. If continuity is not as specified, replace the multifunction switch.
