Home >> Kia >> 2005 >> Optima V6-2.7L >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Diagrams By Diagram Name >> Diagram Y-1b

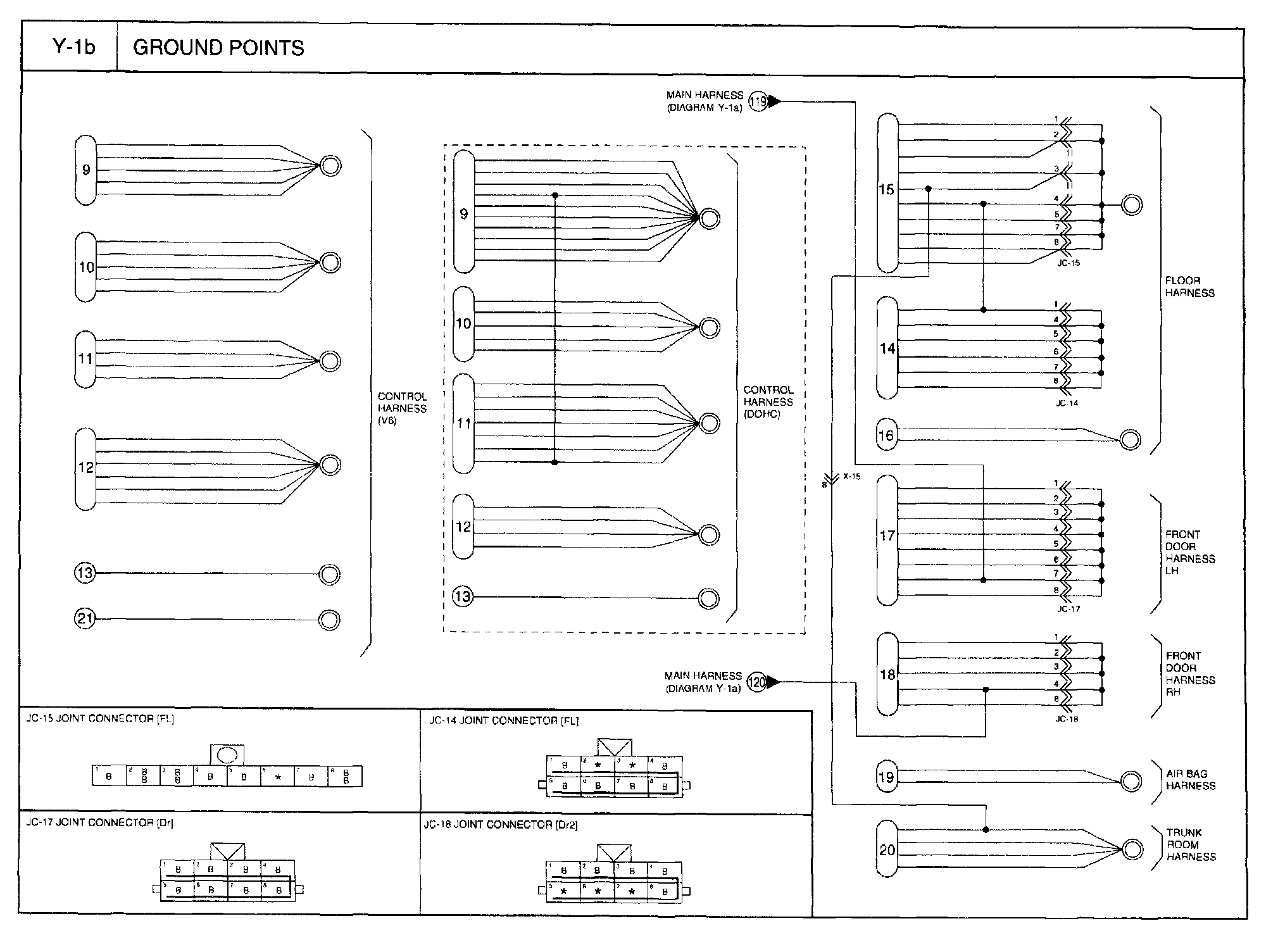

Diagram Y-1b

Diagram Y-1b:
