Home >> Kia >> 2005 >> Optima L4-2.4L >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Diagrams By Diagram Name >> Diagram C-1c

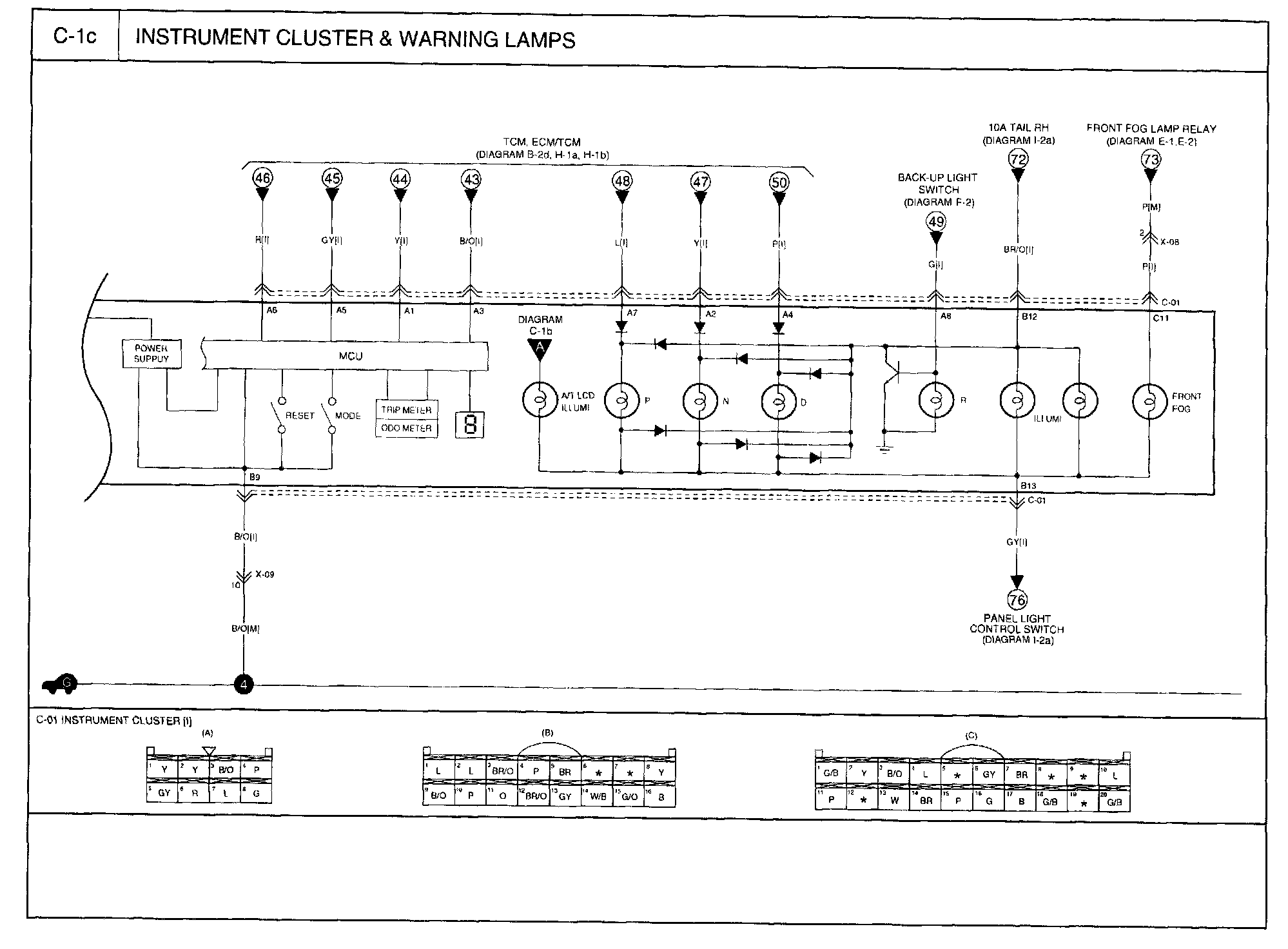

Diagram C-1c

Diagram C-1c:
