Instrument Illumination

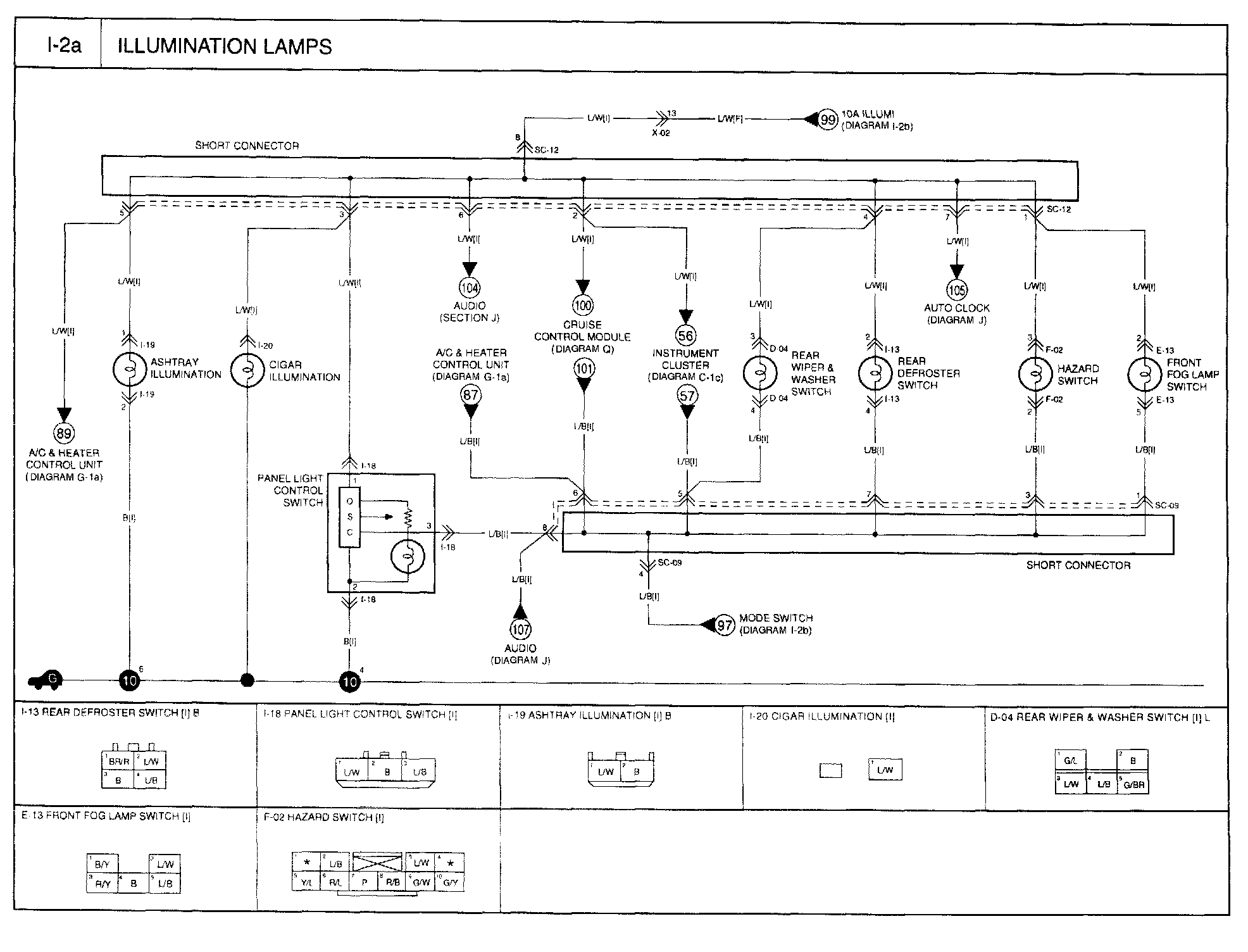

Diagram I-2a:
Routing View I-2a:

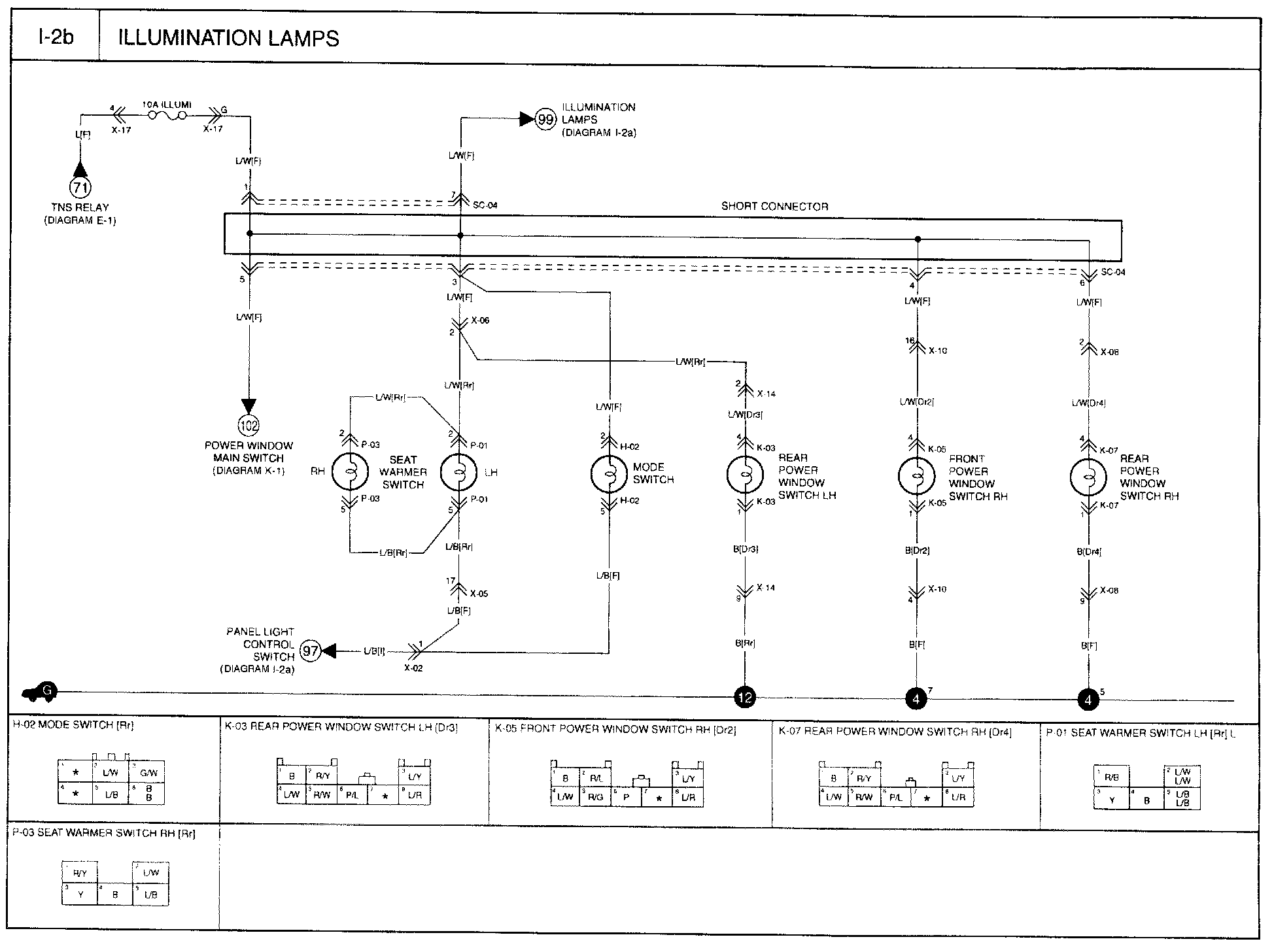

Diagram I-2b:

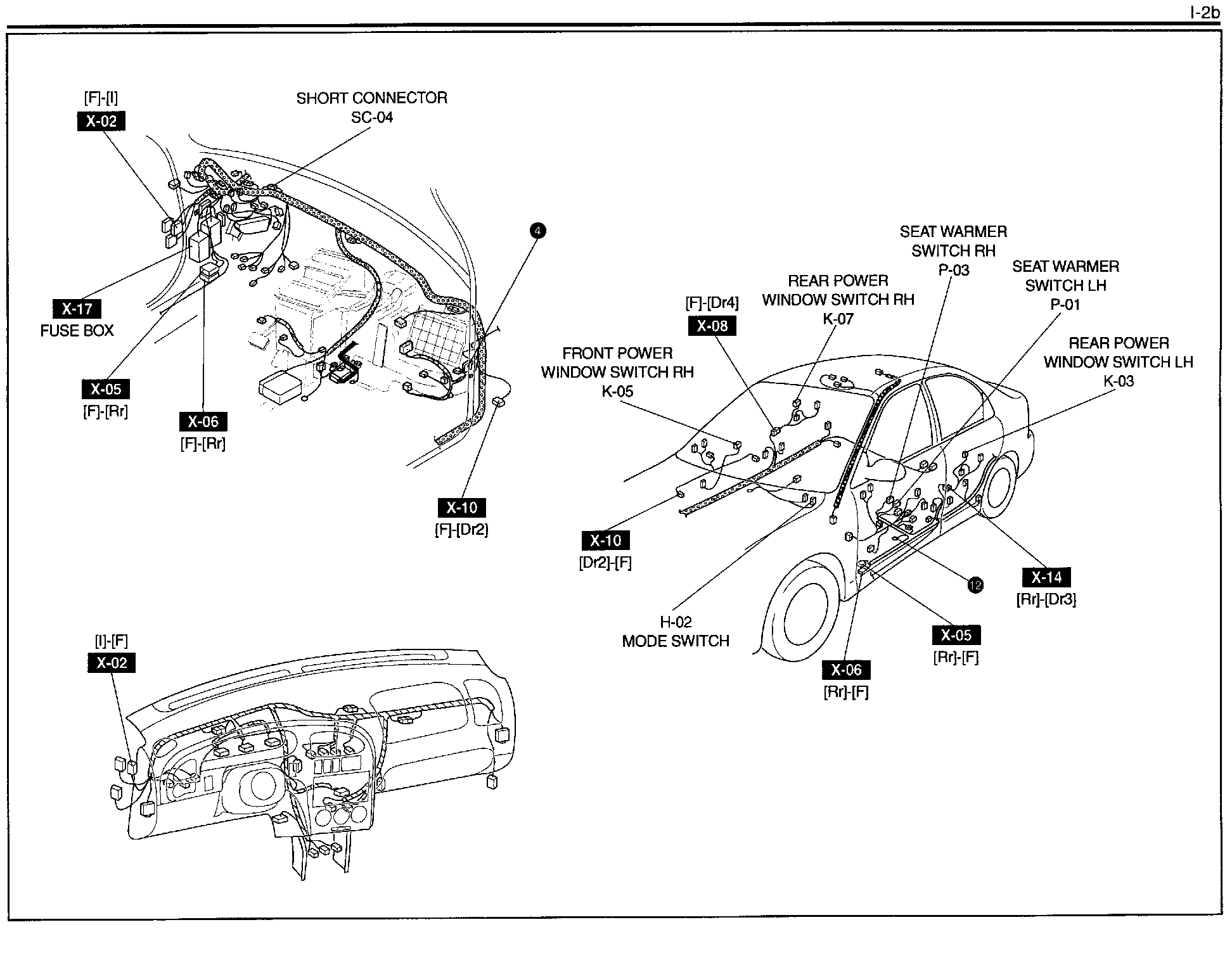

Routing View I-2b:
Diagrams: Other diagrams referred to by name within these diagrams can be found at Diagrams by Diagram Name. Diagrams By Diagram Name
