Electronic Time & Warning Indication System (Etws), Cigar Lighter, Rear Defroster

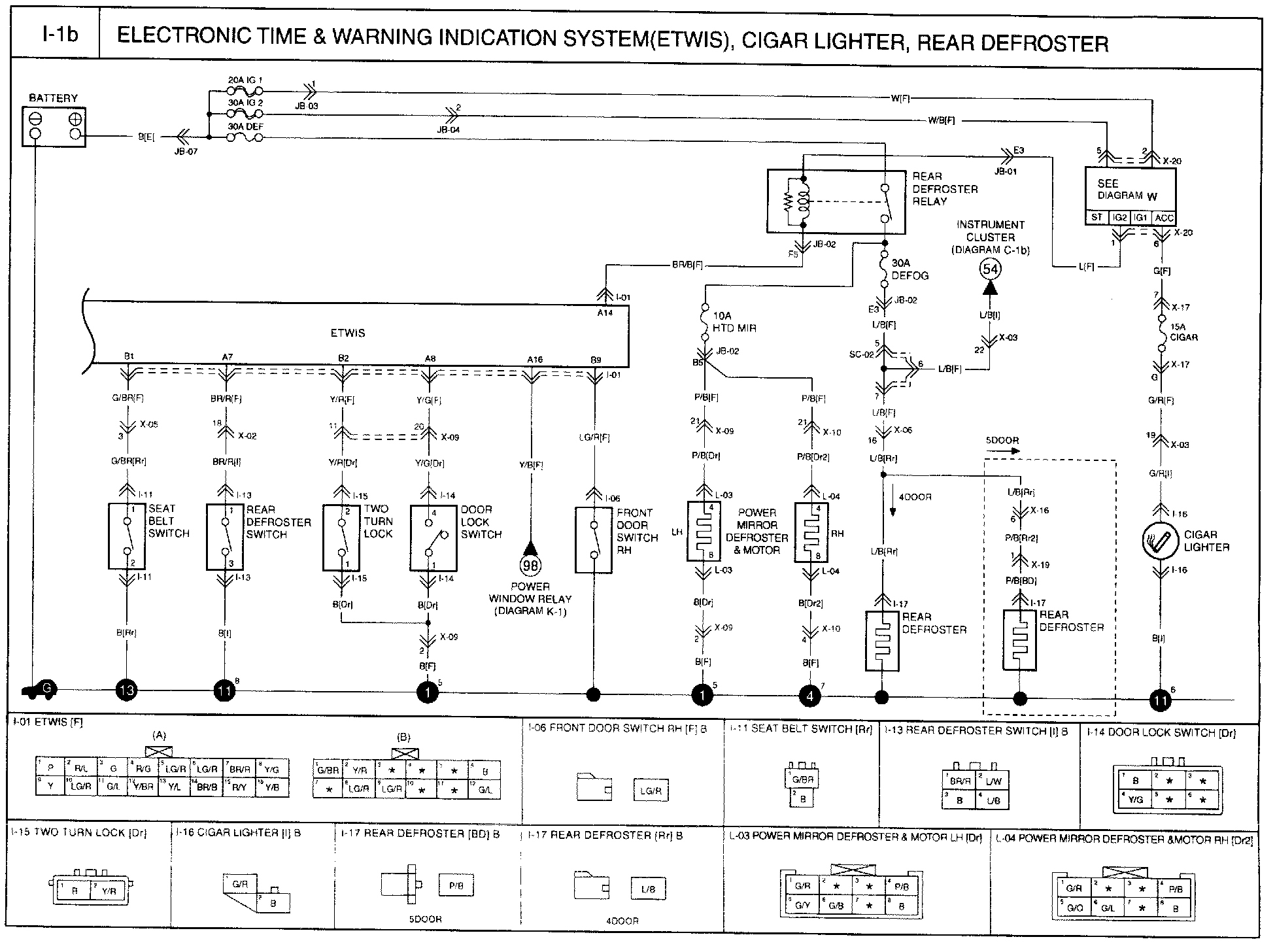

Diagram I-1b:

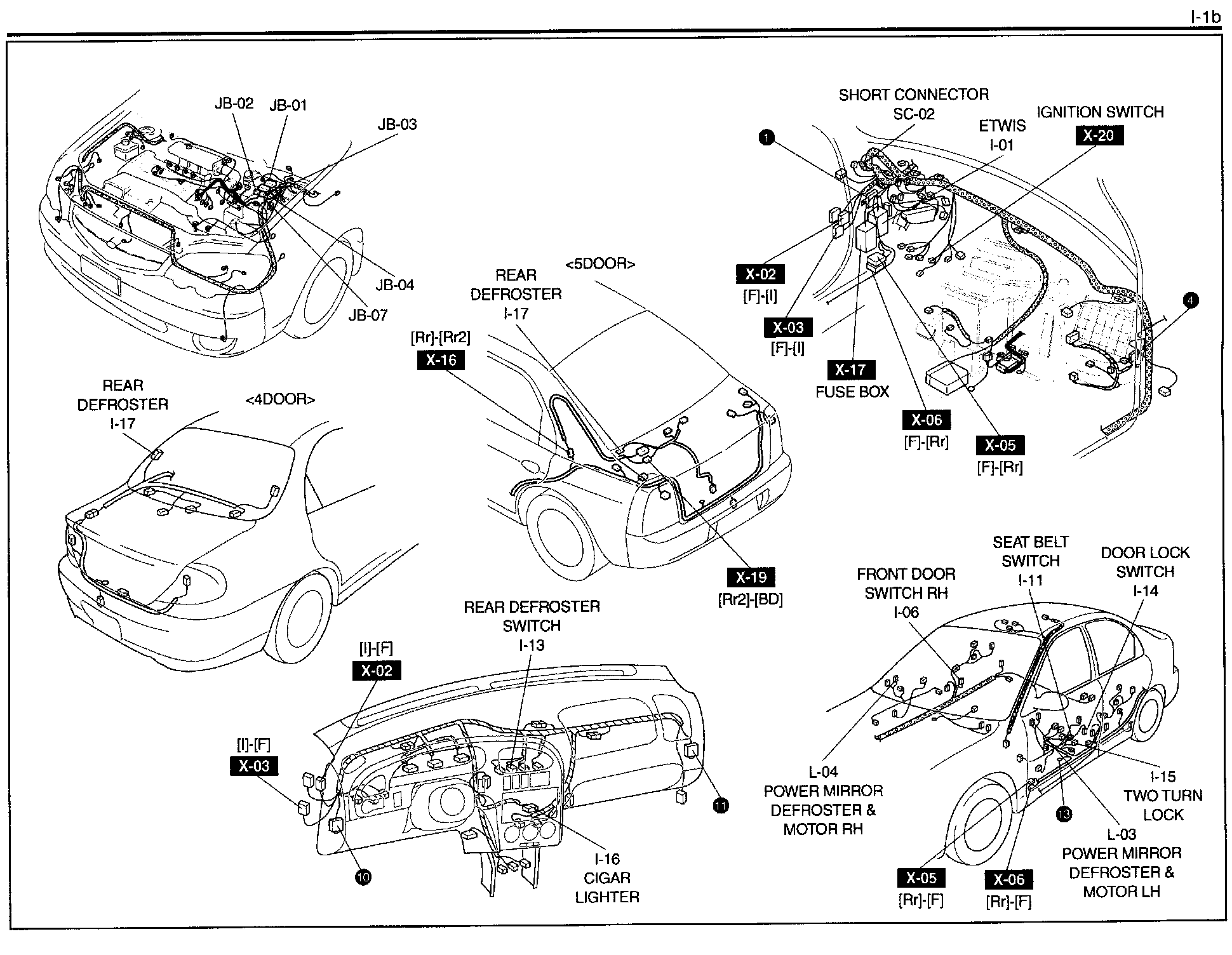

Routing View I-1b:
Diagrams: Other diagrams referred to by name within these diagrams can be found at Diagrams by Diagram Name. Diagrams By Diagram Name
Diagrams: Other diagrams referred to by name within these diagrams can be found at Diagrams by Diagram Name. Diagrams By Diagram Name
