Removal & Installation

  1. Disconnect the negative (-) battery terminal.

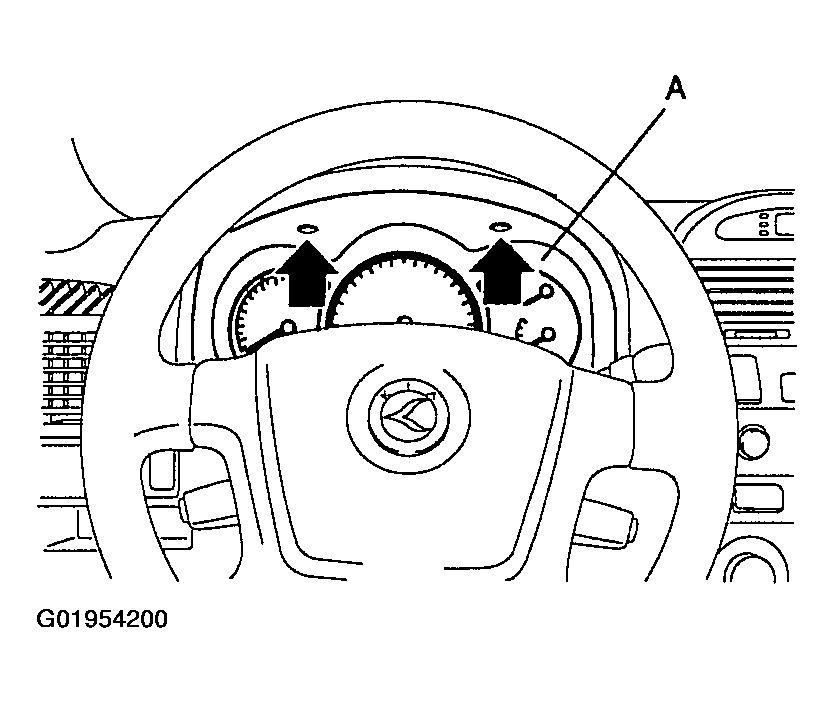

  2. Remove the cluster facia panel (A).
    Fig 1: Removing The Cluster Facia Panel
    G01954200Courtesy of KIA MOTORS AMERICA, INC.

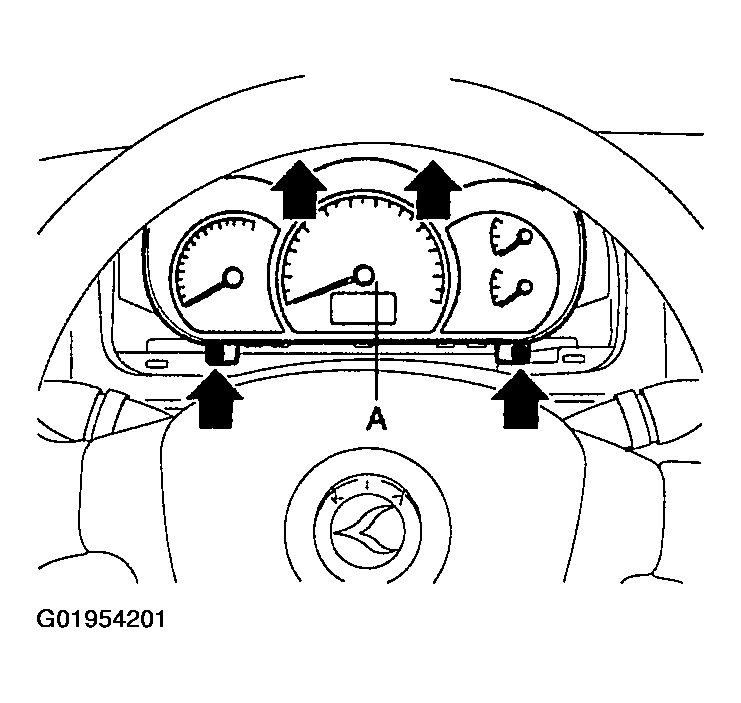

  3. Remove the cluster (A) from the housing after removing 4 screws.
    Fig 2: Removing The Cluster From The Housing
    G01954201Courtesy of KIA MOTORS AMERICA, INC.
  4. Remove the cluster connector and the cluster.
  5. Installation is the reverse of removal.
