Instrument Cluster: Inspection: Speedometer

Fig 1: Illustrating Wheel Chock Placement

Courtesy of KIA MOTORS AMERICA, INC.

1. Adjust the pressure of the tires to the specified level.
2. Drive the vehicle onto a speedometer tester. Use wheel chocks (A) as appropriate.
3. Check if the speedometer indicator range is within the standard values.
   CAUTION: Do not operate the clutch suddenly or increase/decrease speed rapidly while testing.
   NOTE: Tire wear and tire over or under inflation will increase the indication error.

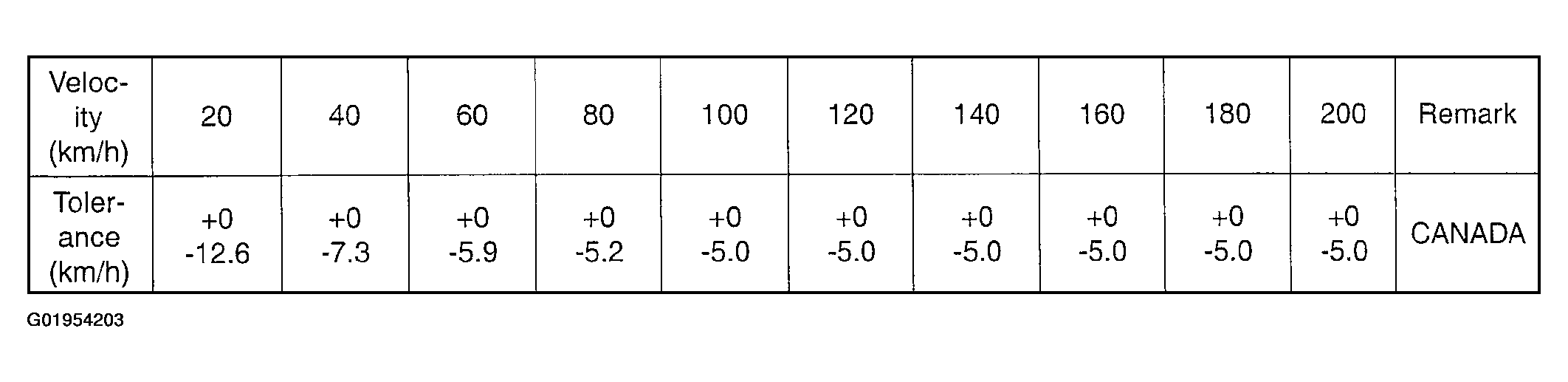

   Fig 2: Speedometer Tolerance Chart (1 Of 2)
