Engine Coolant Temperature Sensor

  1. Using an ohmmeter, measure the resistance between the terminal 2 and ground.
    Fig 1: Testing Engine Coolant Temperature Sensor Resistance
    G01954211Courtesy of KIA MOTORS AMERICA, INC.
  2. If the resistance value is not as shown in the table, replace the temperature sender.

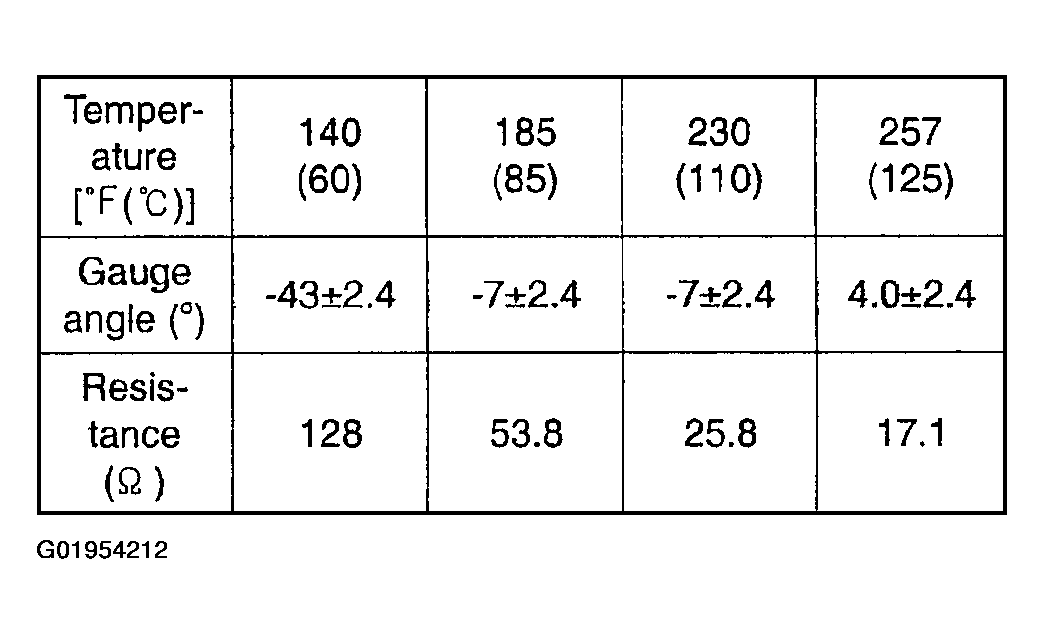

    Fig 2: Engine Coolant Temperature Sensor Resistance Chart
    G01954212Courtesy of KIA MOTORS AMERICA, INC.
