Brake Fluid Level Warning Switch

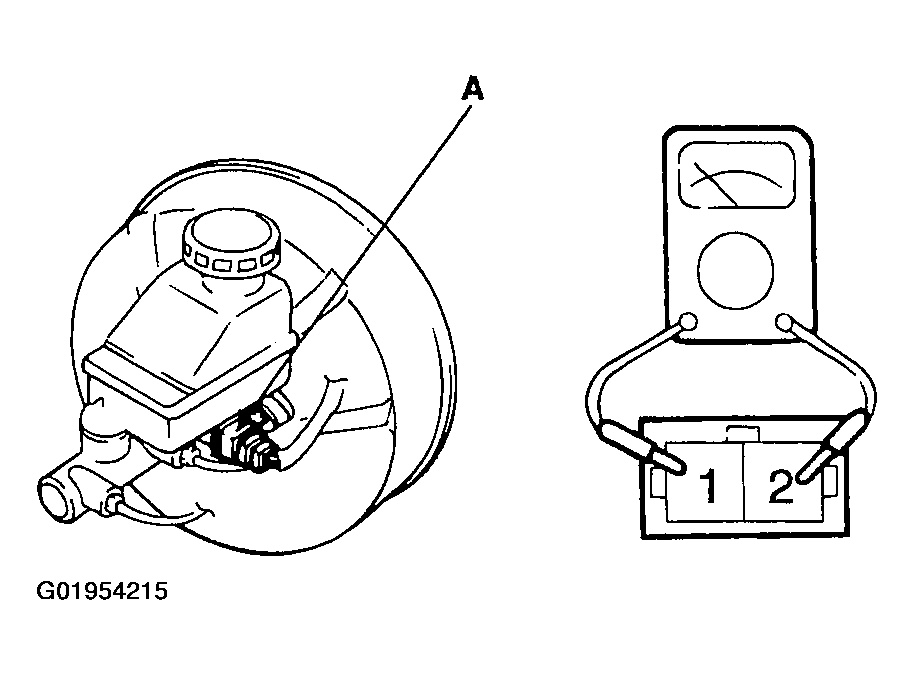

- Remove the connector (A) from the switch located at the brake fluid reservoir.
- Verify that continuity exists between switch terminals 1 and 2 while pressing the switch (float) down with a rod.
Courtesy of KIA MOTORS AMERICA, INC.
