LEMON Manuals: Even more car manuals for everyone
Home >> Kia >> 2004 >> Sedona EX >> Repair and Diagnosis >> Accessories & Equipment >> Gauges & Instrument Panels >> Indicators & Gauges >> General >> Specifications

Indicators & Gauges: General: Specifications

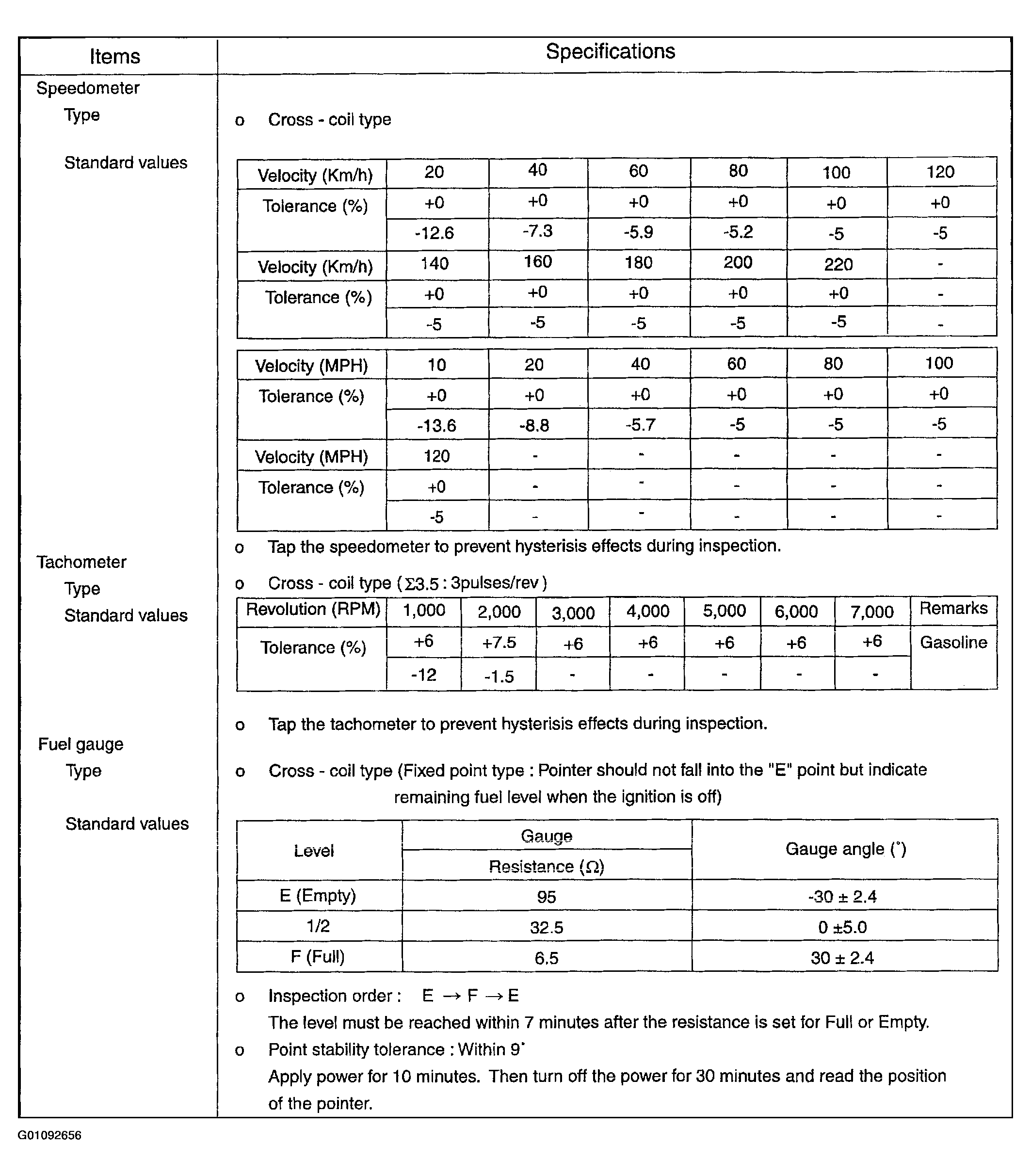

Fig 1: Identifying Indicators & Gauges Service Specifications (1 Of 2)
G01092656Courtesy of KIA MOTORS AMERICA, INC.

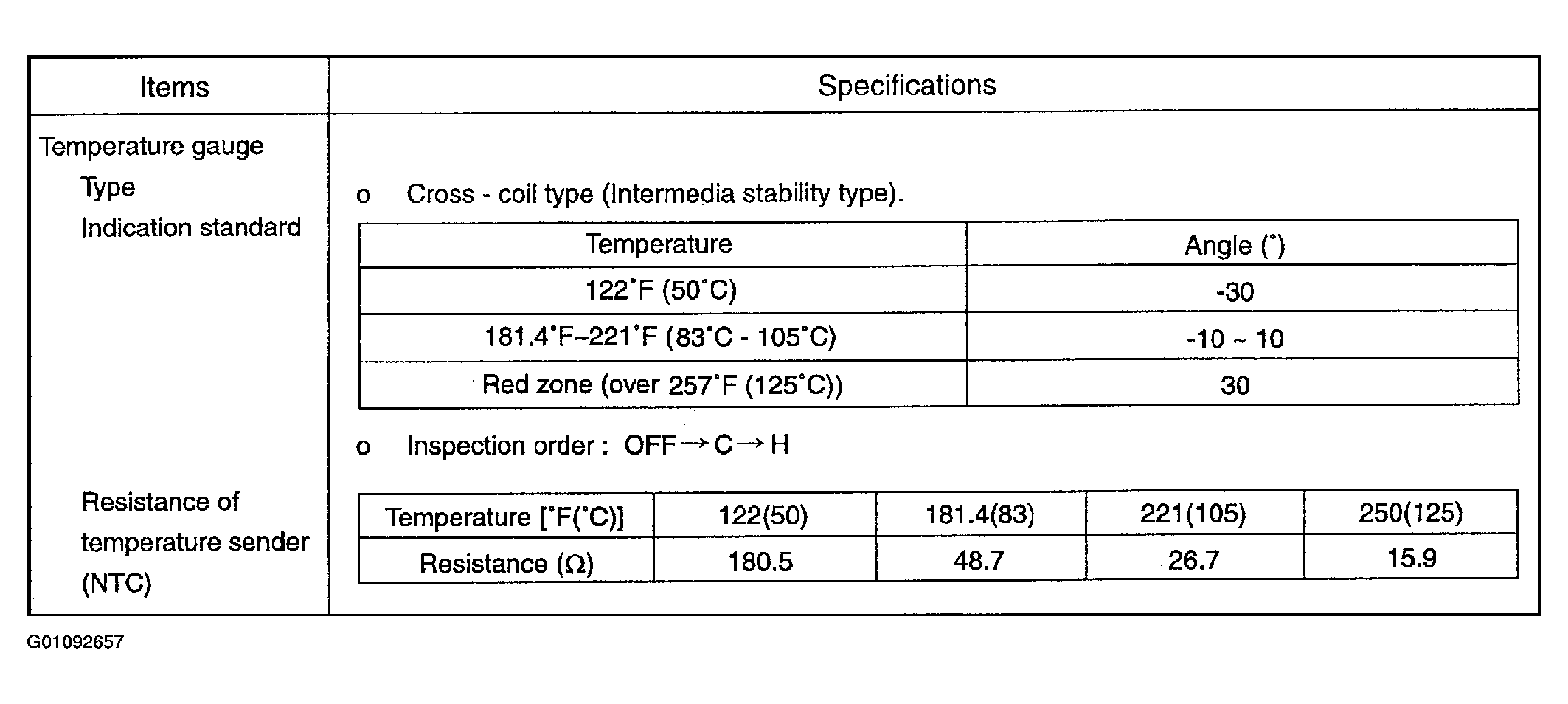

Fig 2: Identifying Indicators & Gauges Service Specifications (2 Of 2)
G01092657Courtesy of KIA MOTORS AMERICA, INC.
