Home >> Kia >> 2004 >> Optima V6-2.7L >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Diagrams By Diagram Name >> Diagram C-1b

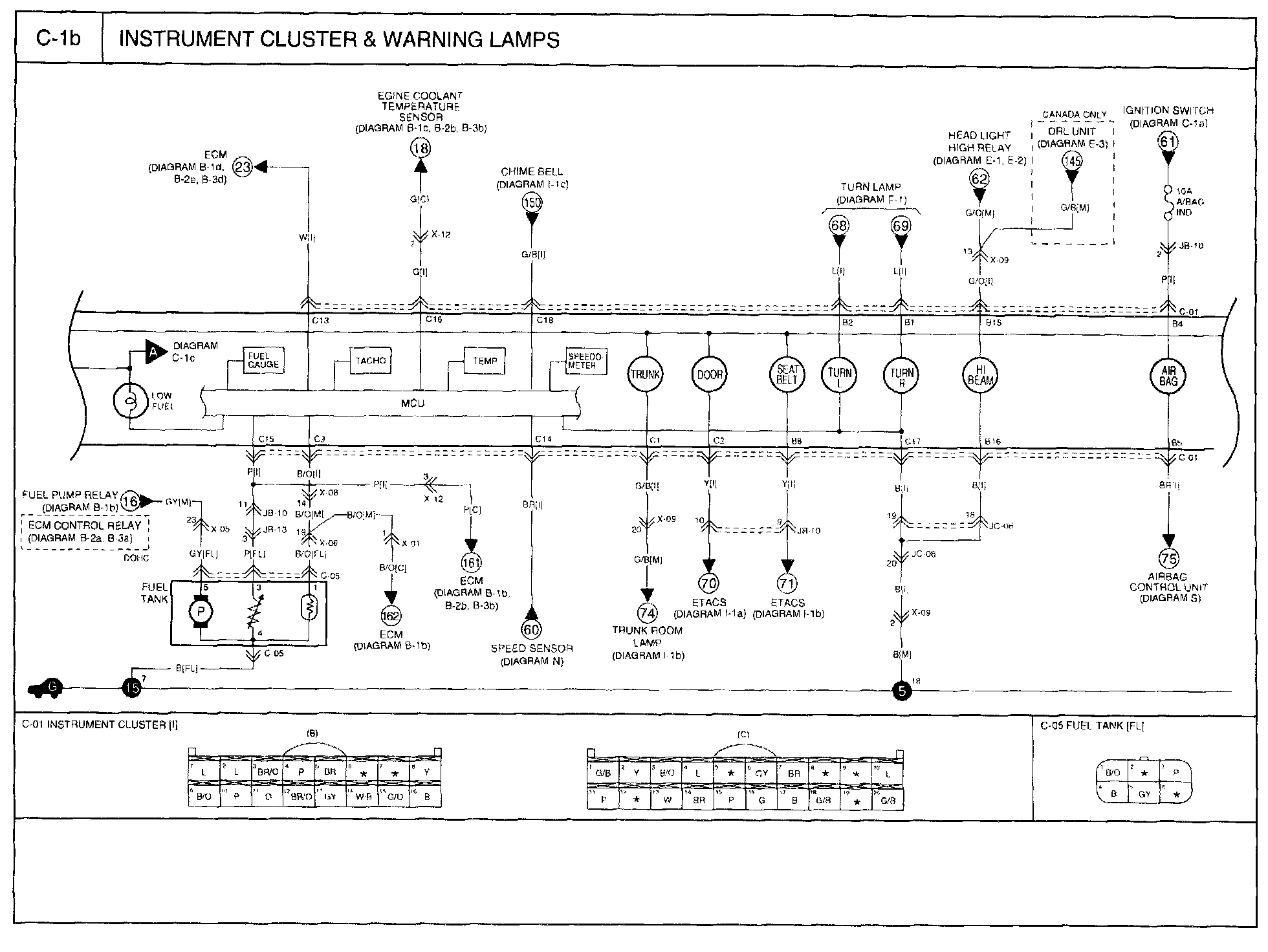

Diagram C-1b

Diagram C-1b:
