Instrument Cluster: Removal

  1. Remove three screws from instrument cluster trim.

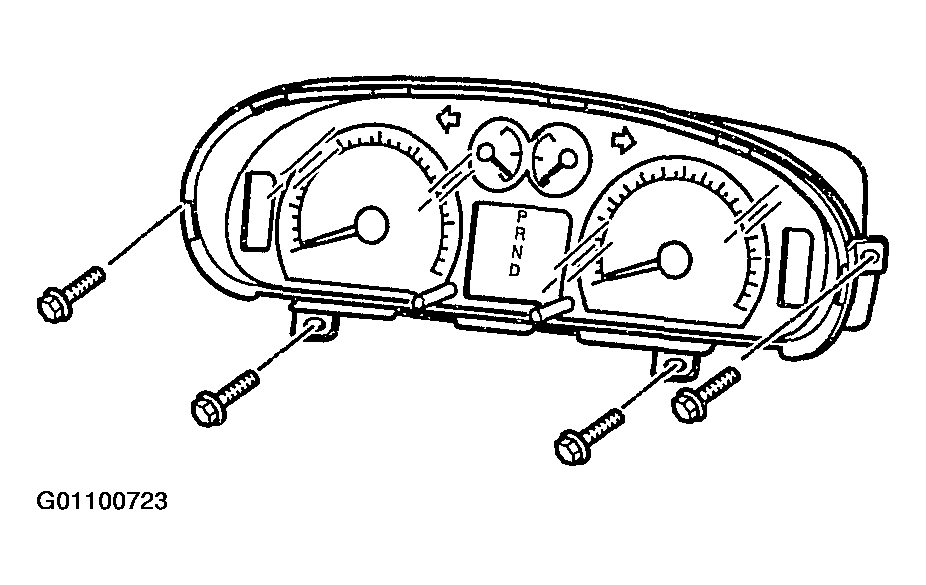

    Fig 1: Removing Screws From Instrument Cluster Trim
    G01100723Courtesy of KIA MOTORS AMERICA, INC.
  2. Remove four mounting screws.
  3. Pull cluster from instrument panel.
  4. Disconnect two connectors.
  5. Remove instrument cluster.
