Removal (Outside)

  1. Disconnect negative battery cable.
  2. Remove two bolts from service hole cover.
  3. Remove four nuts attaching rear combination light assembly to vehicle.

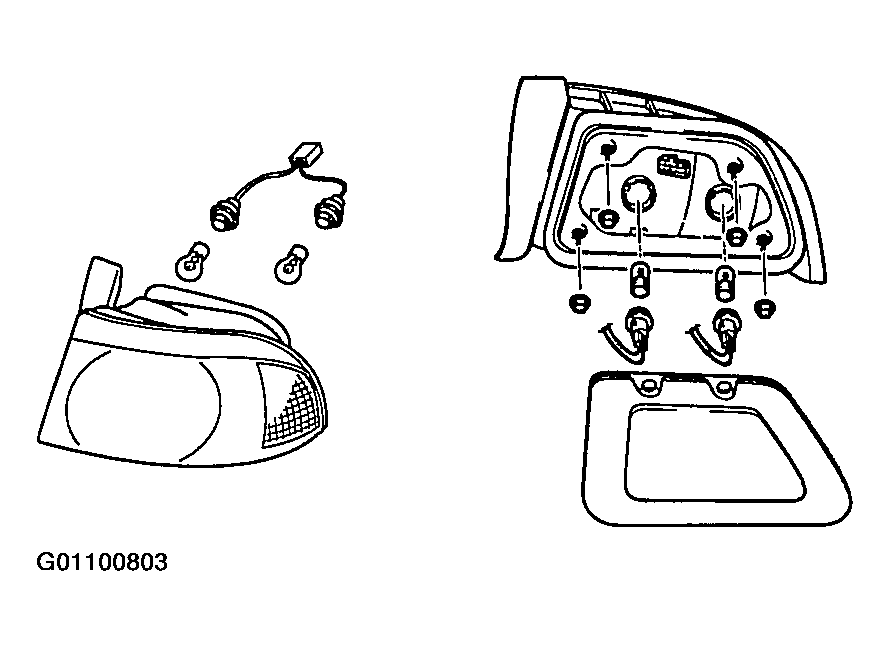

    Fig 1: Removing Rear Combination Light Assembly
    G01100803Courtesy of KIA MOTORS AMERICA, INC.
  4. Disconnect electrical connector.
  5. Remove light assembly.
