Installation (Outside)

  1. Position light assembly on vehicle with studs through mounting holes on vehicle.
  2. Connect electrical connector.
  3. Install four nuts on rear combination light.

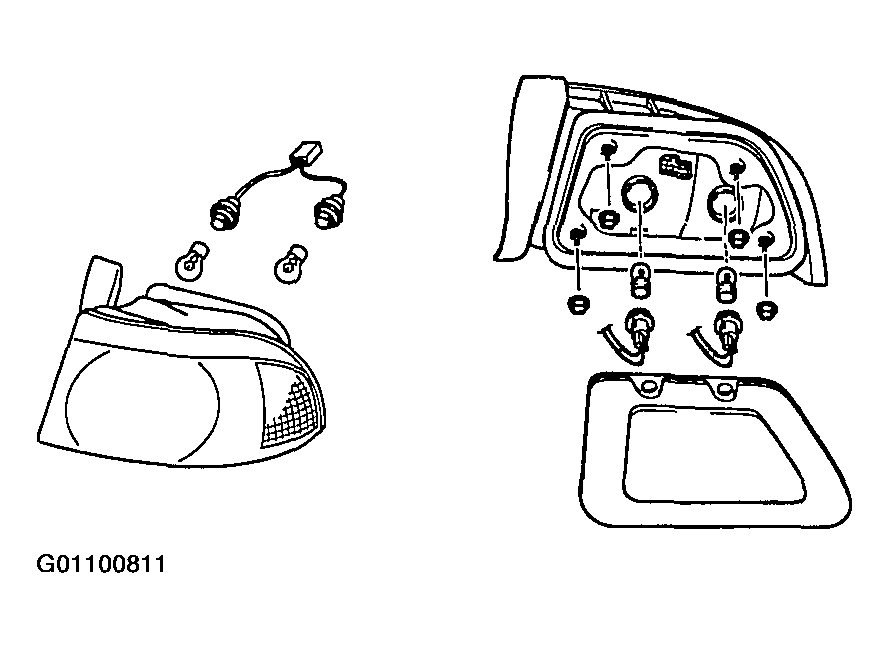

    Fig 1: Installing Bolts Onto Rear Combination Light
    G01100811Courtesy of KIA MOTORS AMERICA, INC.
  4. Install two bolts on service hole cover.
  5. Connect negative battery cable.
