Tail, Parking And License Lamps: Disassembly

All parts except the lens housing assembly is interchangeable from left to right.

  1. Remove bulb holder from lens housing assembly.

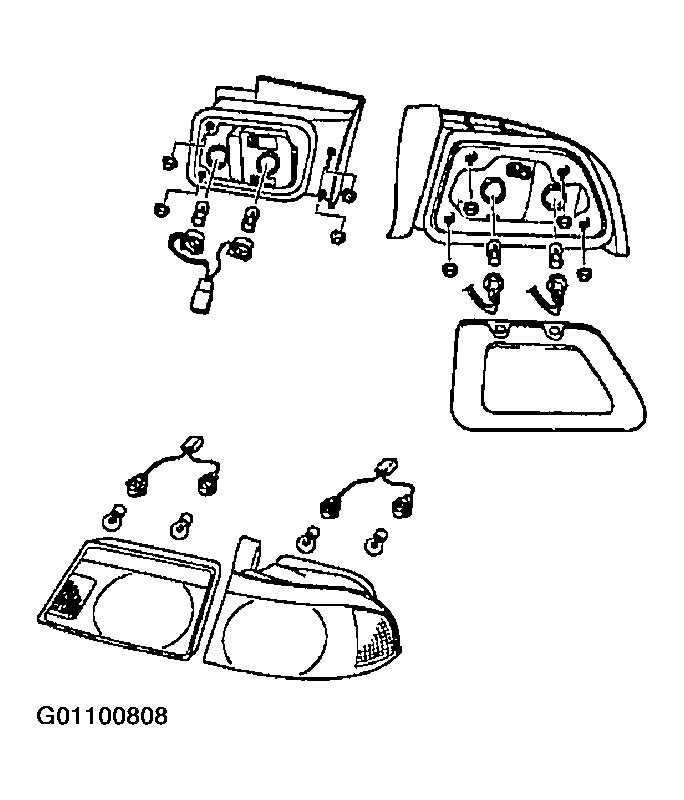

    Fig 1: Removing Bulb Holder From Lens Housing Assemblies
    G01100808Courtesy of KIA MOTORS AMERICA, INC.
  2. Remove bulbs from bulb holder.
