High Mount Stop Lamp: Removal

  1. Disconnect negative battery cable.
  2. Open trunk lid.
  3. Remove two nuts that attach light assembly to vehicle.

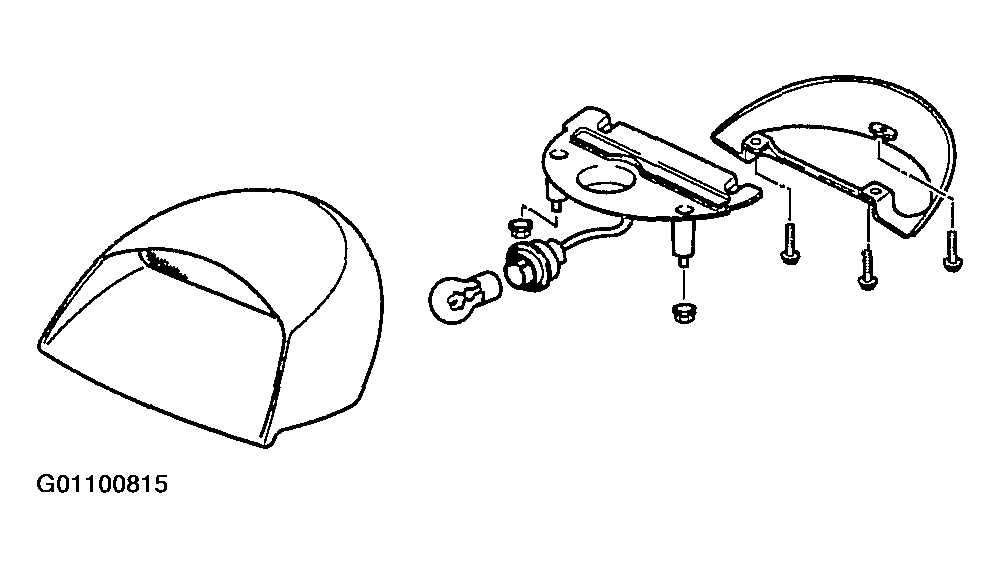

    Fig 1: Removing Light Assembly From Vehicle
    G01100815Courtesy of KIA MOTORS AMERICA, INC.
  4. Disconnect electrical connector from light assembly; remove light assembly.
