Removal And Installation

  1. Remove the negative (-) battery terminal.
  2. Remove the crush pad plate after removing side mounting cover.
  3. Remove the cluster facia panel after loosening the screw.

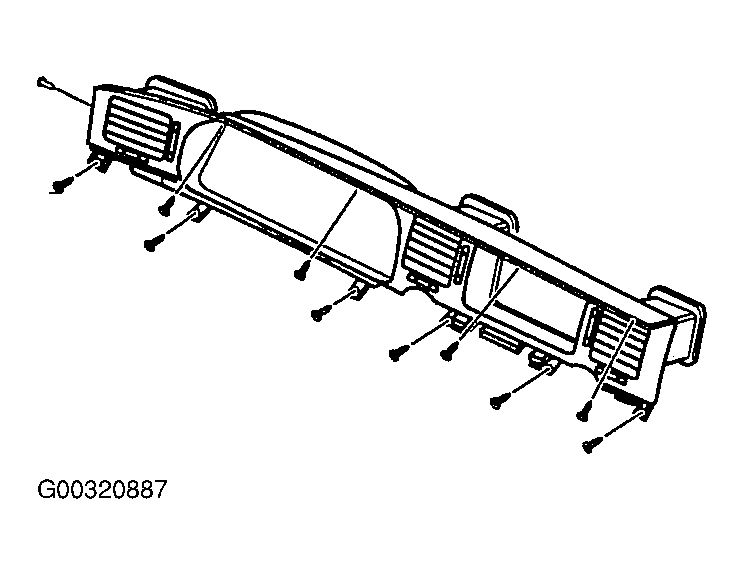

    Fig 1: Removing The Cluster Facia Panel
    G00320887Courtesy of KIA MOTORS AMERICA, INC.
  4. Remove the cluster after loosening screw.

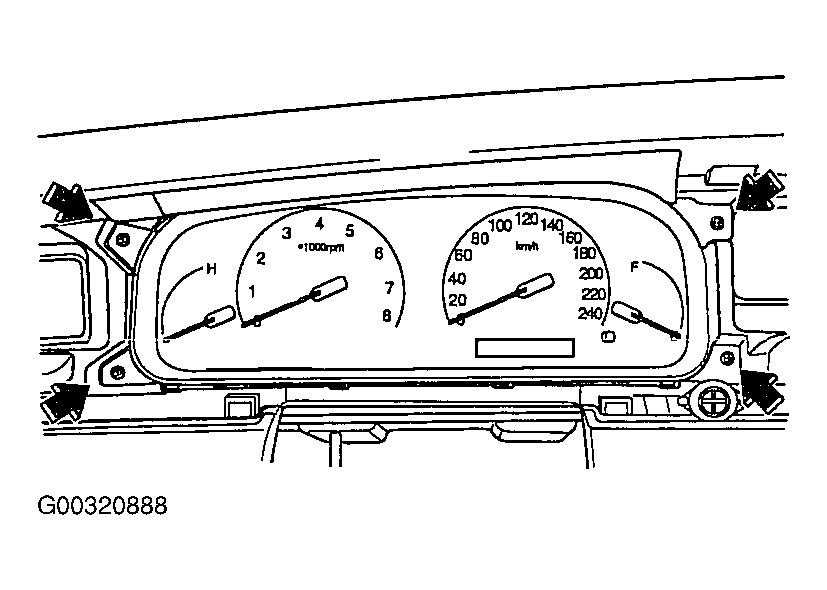

    Fig 2: Removing The Cluster
    G00320888Courtesy of KIA MOTORS AMERICA, INC.
  5. Installation is reverse of removal.
