Circuit Diagram
Circuit Diagram

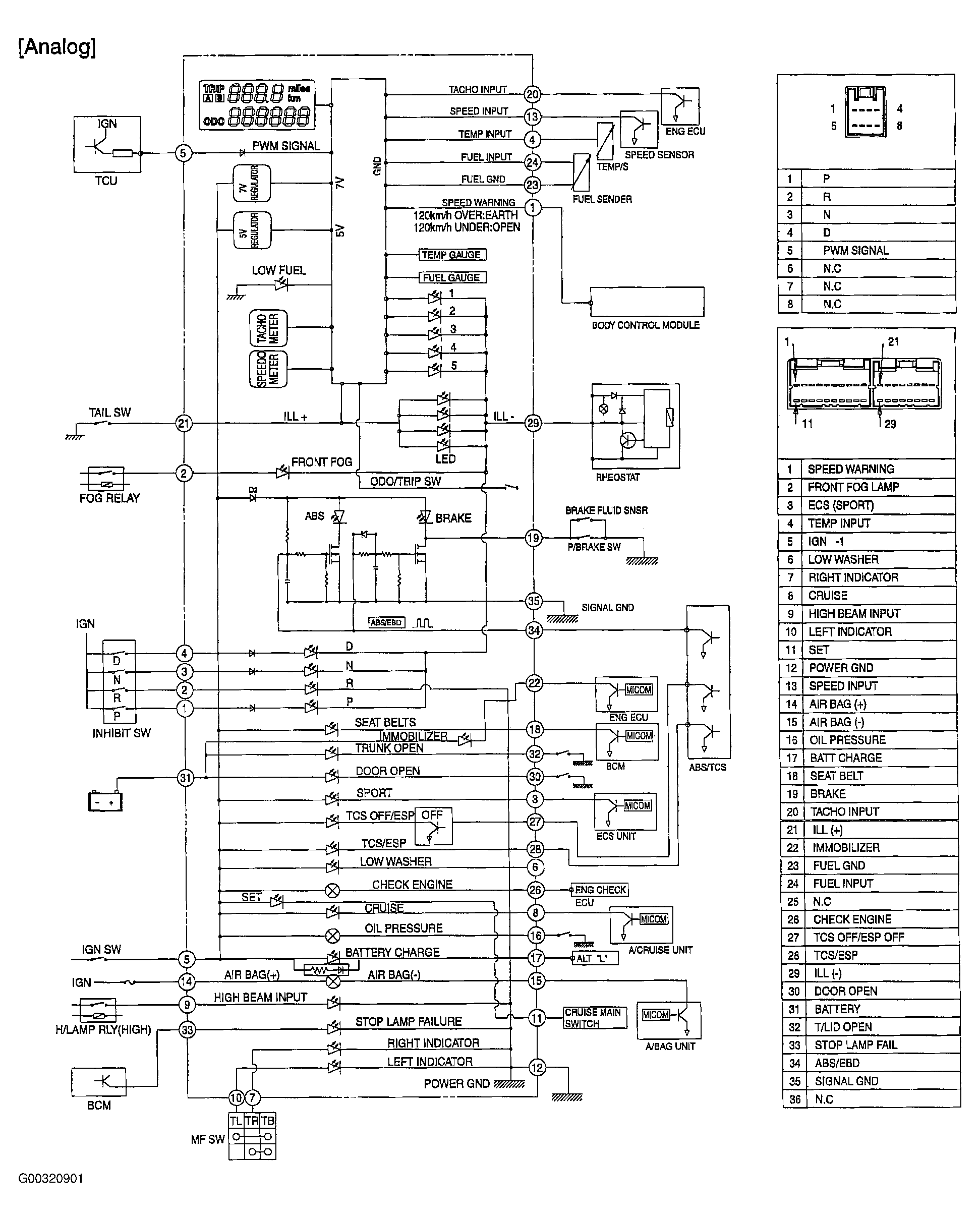

Fig 1: Analog Cluster Circuit Diagram
Courtesy of KIA MOTORS AMERICA, INC.

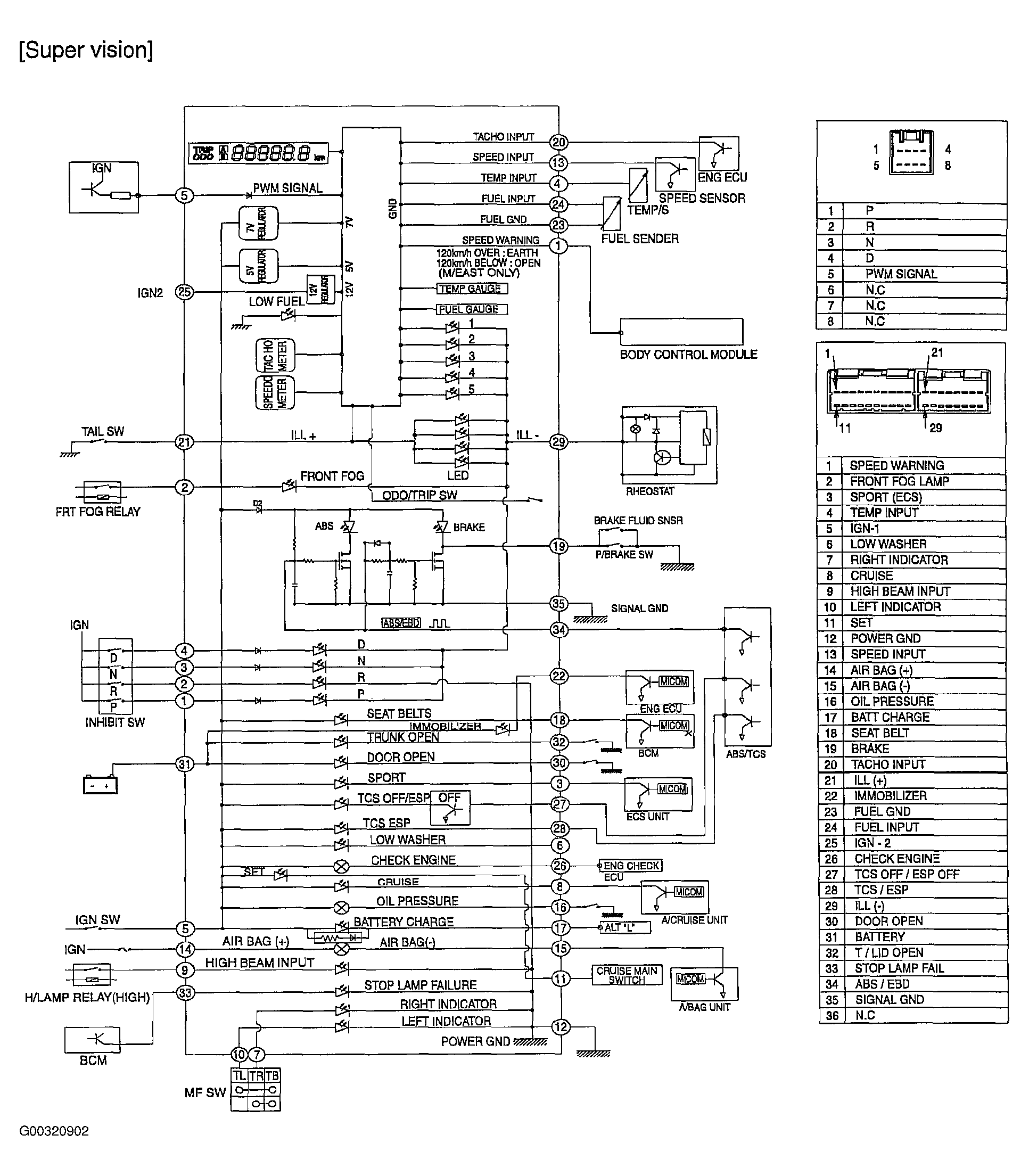

Fig 2: Super Vision Cluster Circuit Diagram
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
