DTC P0740, P0741, P0742: Torque Converter Clutch System

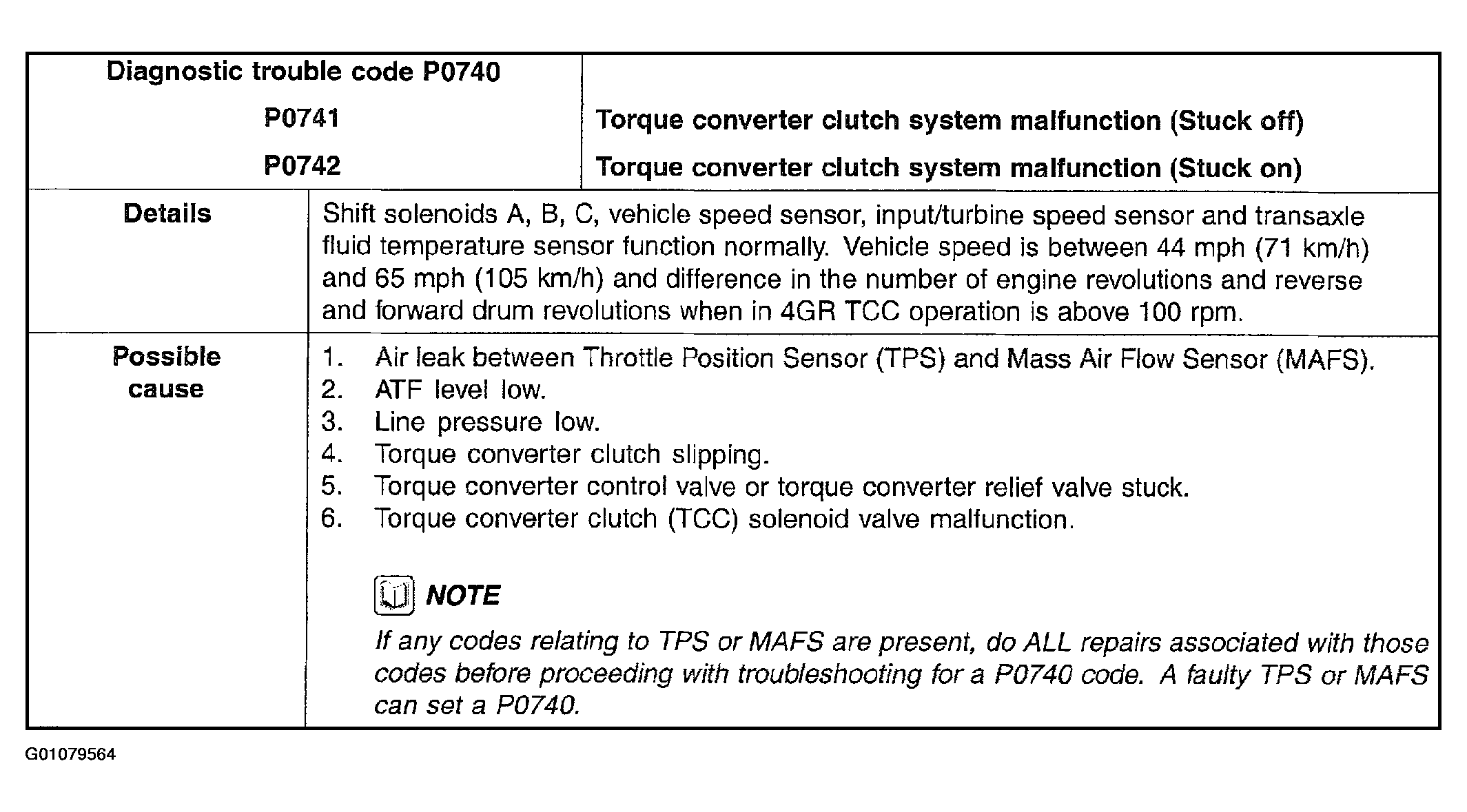

Fig 1: Possible Cause Chart, P0740, P0741, P0742 - Torque Converter Clutch System

Courtesy of KIA MOTORS AMERICA, INC.

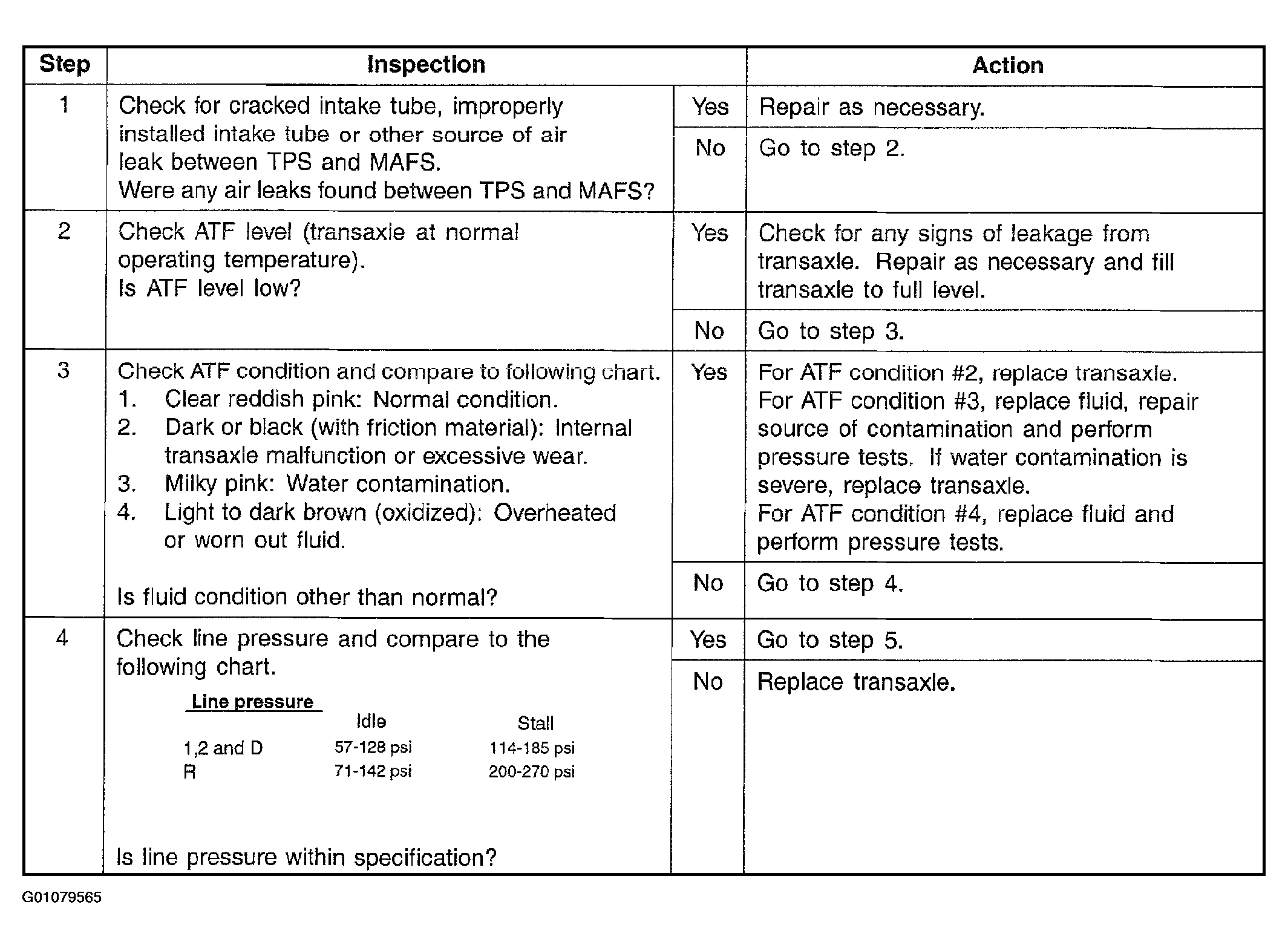

Fig 2: Inspection/Action Chart (1 Of 2)

Courtesy of KIA MOTORS AMERICA, INC.

Fig 3: Inspection/Action Chart (2 Of 2)

Courtesy of KIA MOTORS AMERICA, INC.
