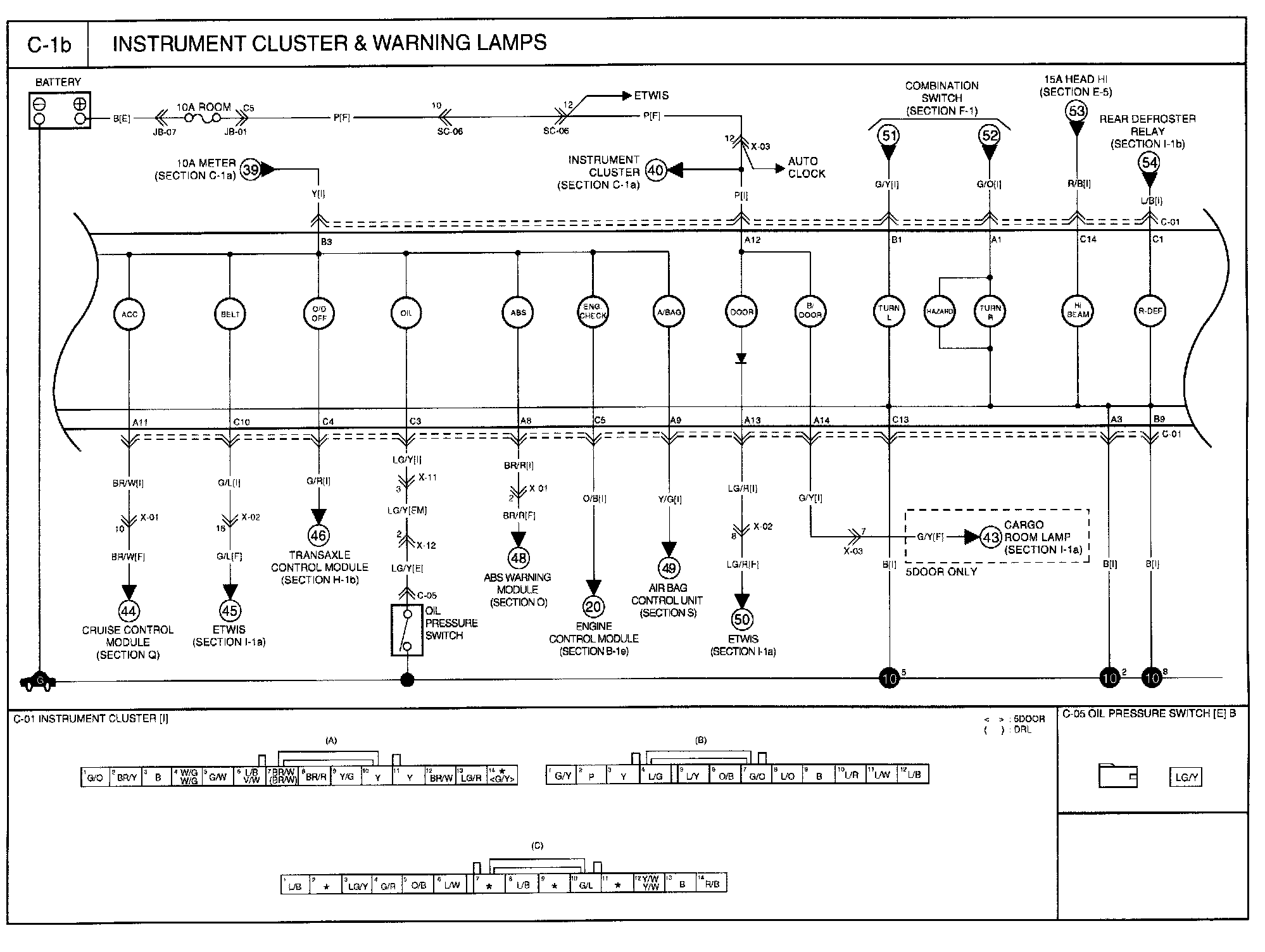

C-1b - Instrument Cluster & Warning Lamps
C-1b - Instrument Cluster & Warning Lamps Circuit:
NOTE: Other diagrams referred to by section number but not shown here can be found at Diagrams by Diagram Section Number. Electrical Diagrams
NOTE: Other diagrams referred to by section number but not shown here can be found at Diagrams by Diagram Section Number. Electrical Diagrams
