Home >> Kia >> 2003 >> Spectra L4-1.8L >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Diagrams By Diagram Name >> Diagram C-1a

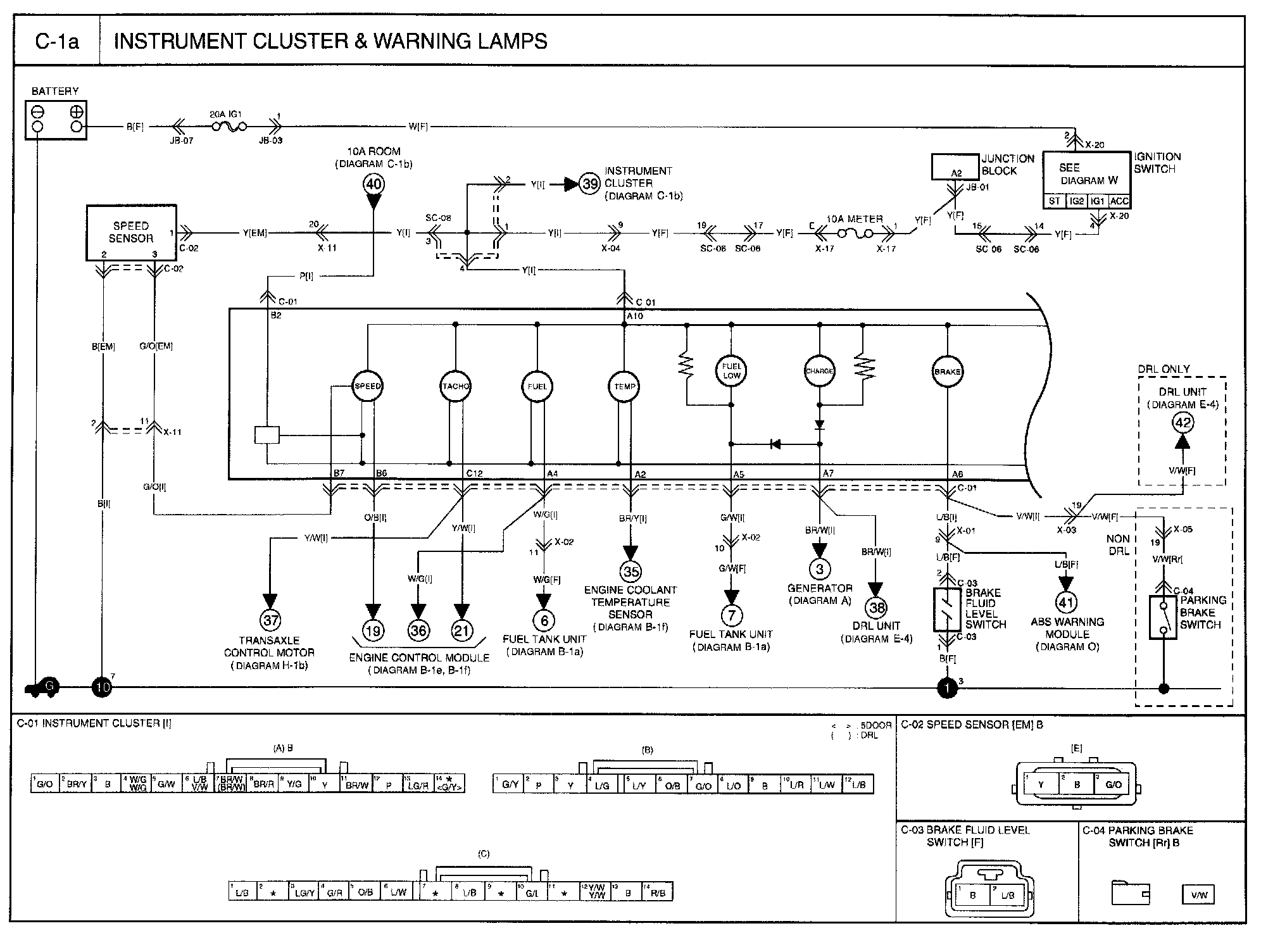

Diagram C-1a

Diagram C-1a:
