Indicators & Gauges: Troubleshooting

In vehicle use, if an instrument does not run smoothly or indicate correctly, remove instrument and test it in shop to determine fault cause. Remove a failed bulb by removing instrument cluster.

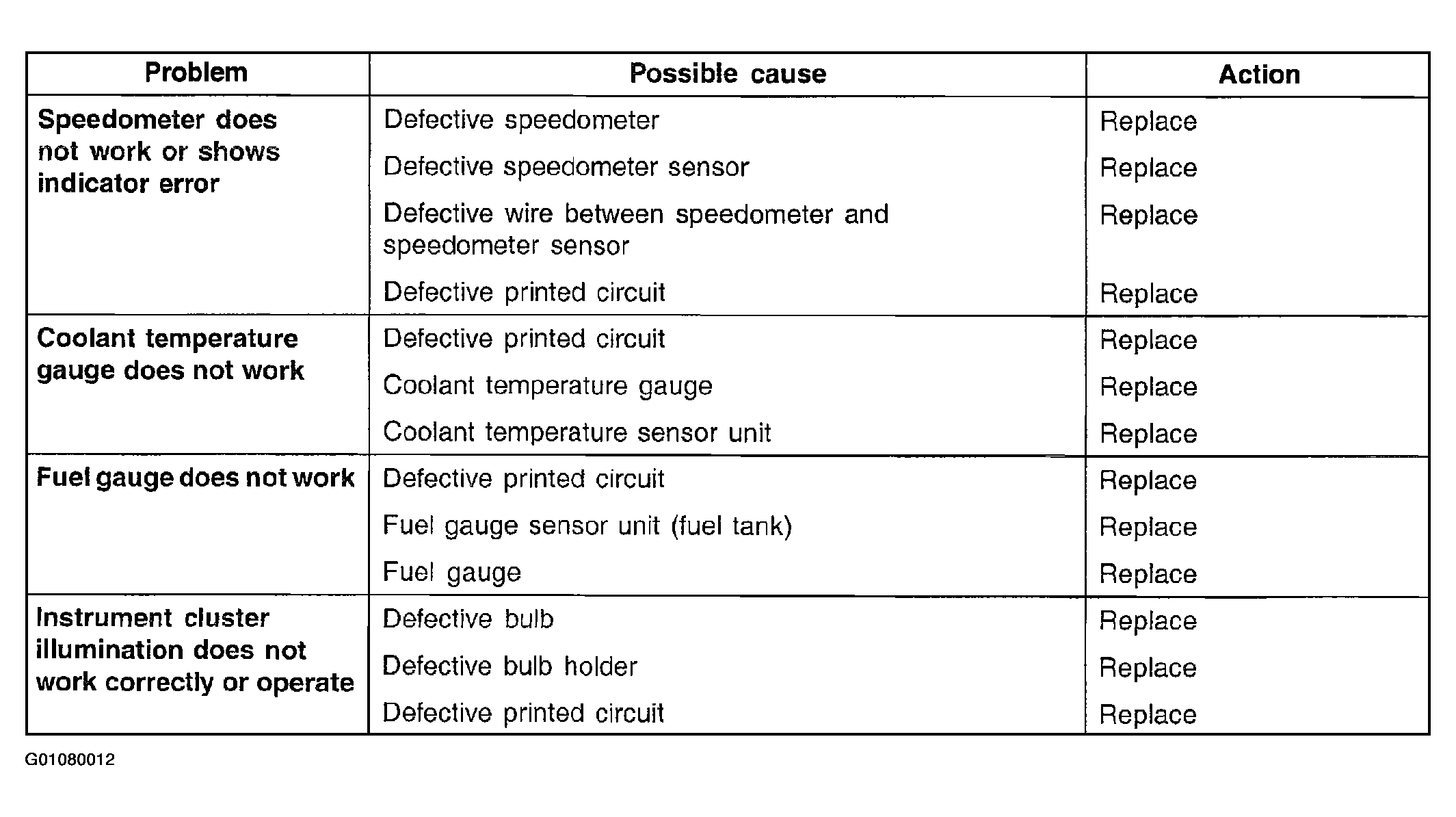

Fig 1: Troubleshooting Indicators & Gauges
G01080012Courtesy of KIA MOTORS AMERICA, INC.
