5 Door: Removal

  1. Remove bulb holders from rear of instrument cluster.
  2. Remove 13 mounting screws from printed circuit area.
  3. Lift printed circuit off of mounting tips.

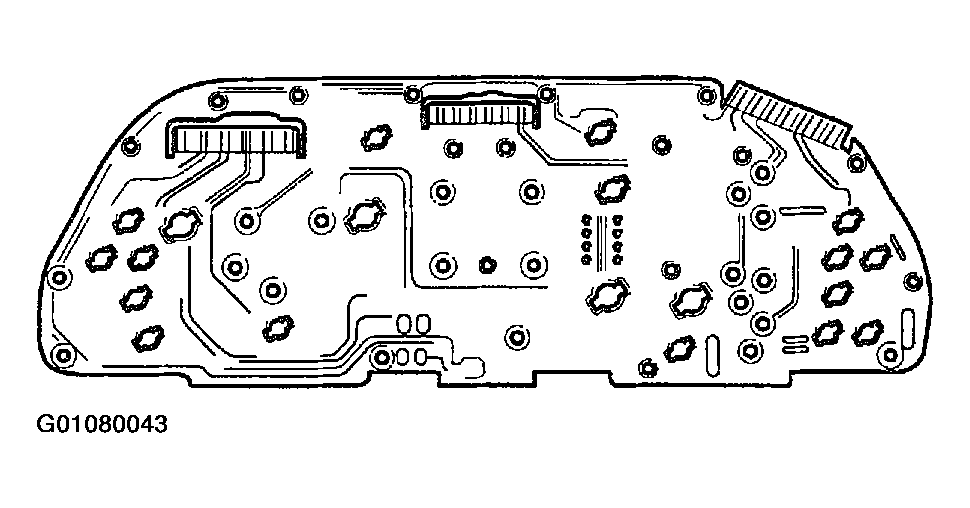

Fig 1: Removing Printed Circuit
G01080043Courtesy of KIA MOTORS AMERICA, INC.
