4 Door: Removal

  1. Remove bulb holders from rear of instrument cluster.
  2. Remove mounting screws from printed circuit area.
  3. Lift printed circuit off of mounting tips.

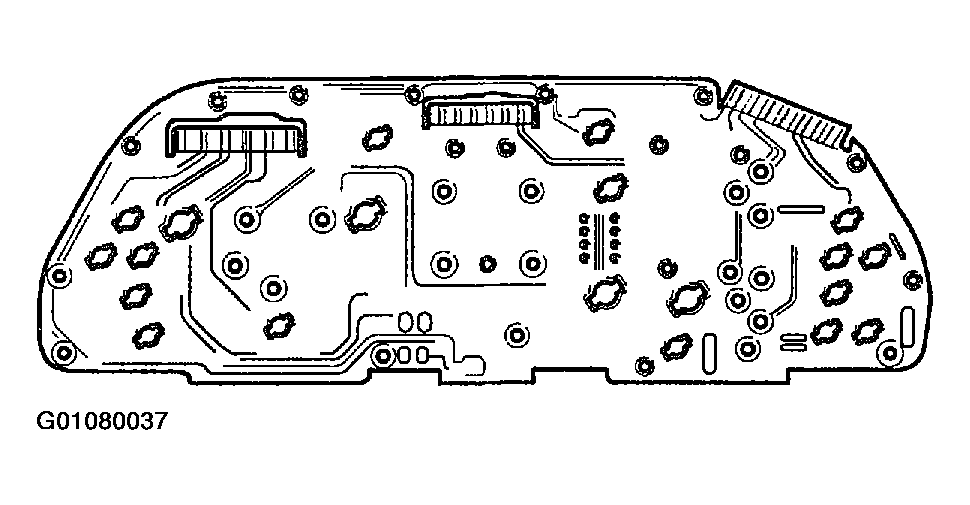

    Fig 1: Lifting Printed Circuit From Mounting Tips
    G01080037Courtesy of KIA MOTORS AMERICA, INC.
