Removal & Installation

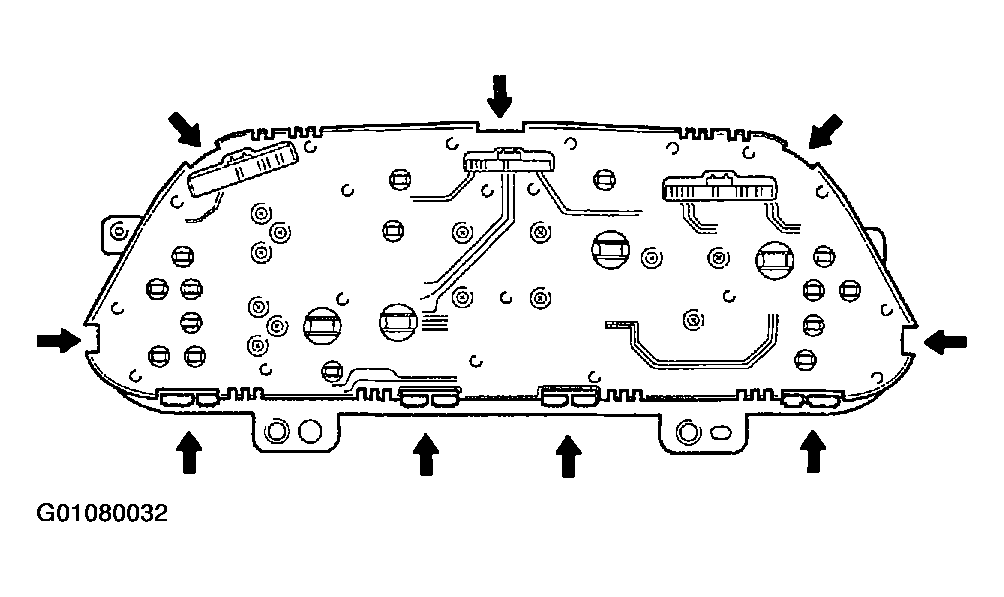

- With instrument cluster bezel/lens downward on a soft, clean shop cloth, press on each of bezel tabs going out around unit while using pressure between bezel/lens and cluster. Do not remove bezel/lens. Make sure each tab is not in a locked position in its mating slot.
- Place instrument cluster case on its back, bezel/ lens facing up, and carefully pull bezel/lens away from cluster case.
- Install in reverse order of removal.
