Combination Switch: Testing and Inspection

INSPECTION

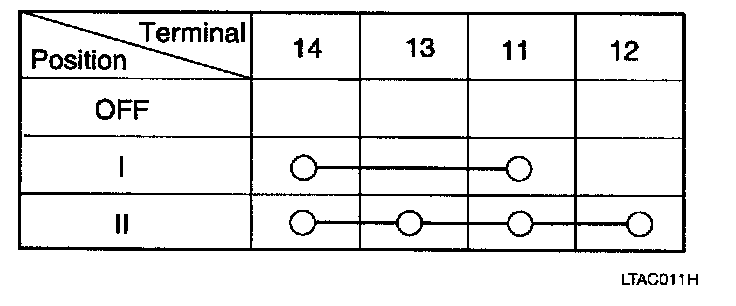

LIGHTING SWITCH [CONNECTOR "1"]:

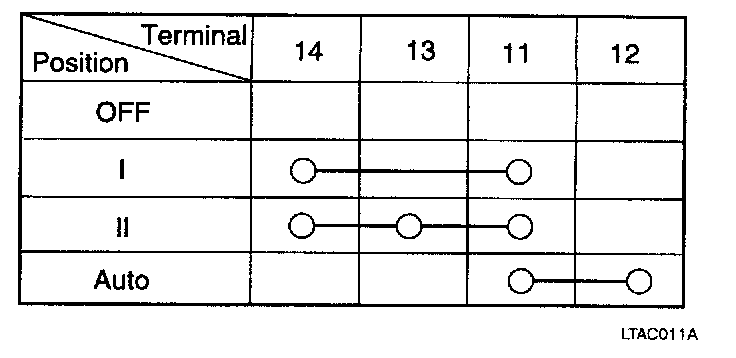

LIGHTING SWITCH (WITH AUTO LIGHT) [CONNECTOR "1"]:

Dimmer And Passing Switch (Connector "1"):

Turn Signal And Lane Change Switch (connector "1"):

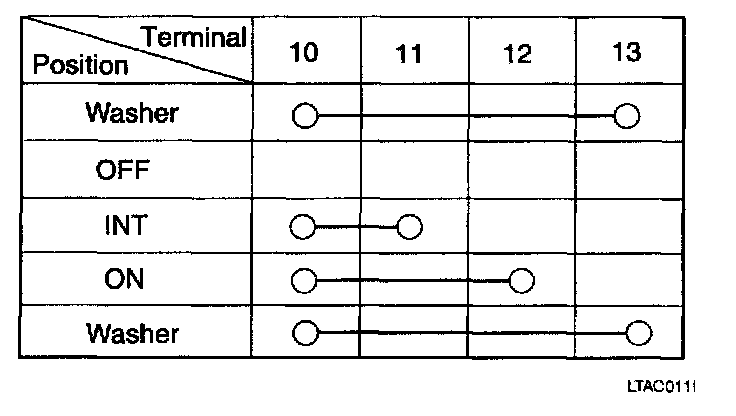

Wiper Switch (connector "2"):

WASHER SWITCH [CONNECTOR "2"]:

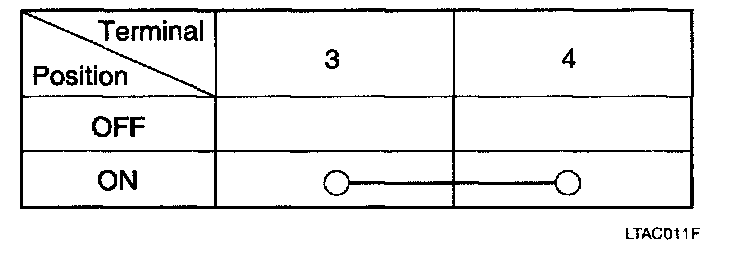

MIST SWITCH [CONNECTOR "2"]:

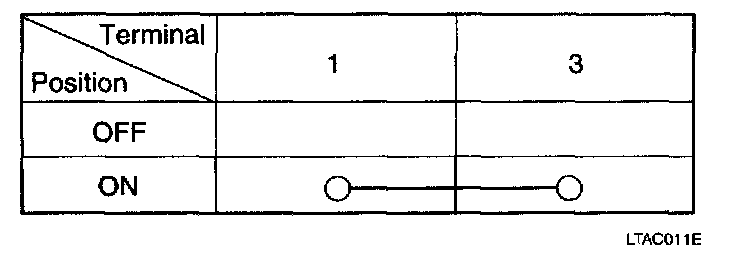

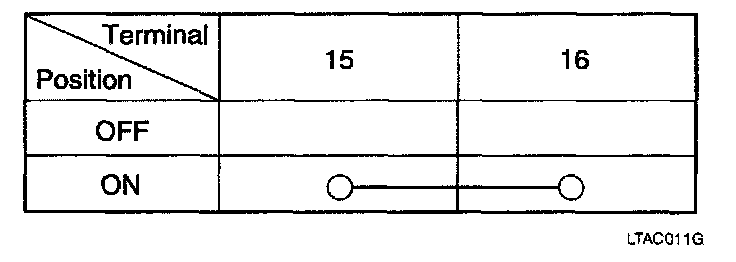

FRONT FOG SWITCH [CONNECTOR "1"]:

REAR WIPER & WASHER SWITCH [CONNECTOR "2"]:

Check the continuity between the terminals while operating the switch.
