Removal And Installation

  1. Disconnect the negative (-) battery terminal.
  2. Remove the cluster housing after removing 2 screws.

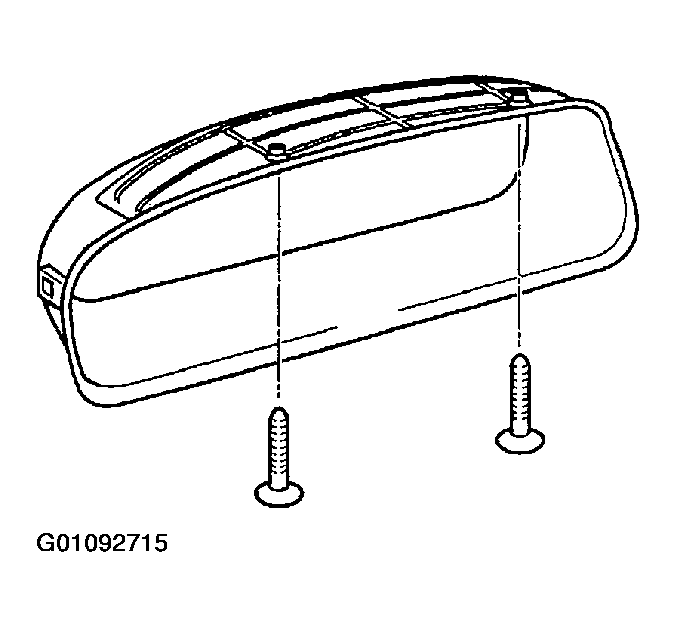

    Fig 1: Removing The Cluster Housing
    G01092715Courtesy of KIA MOTORS AMERICA, INC.
  3. Remove the 4 screws holding the cluster and remove the instrument cluster.

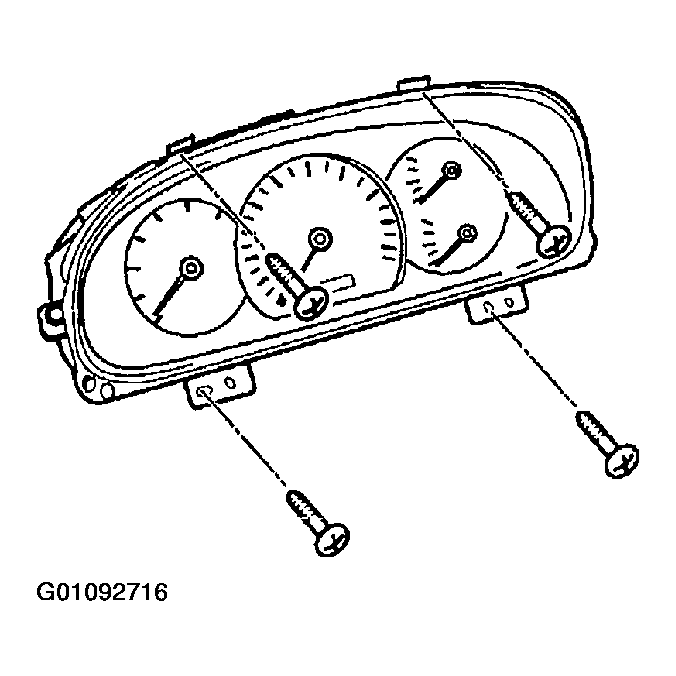

    Fig 2: Removing The Instrument Cluster
    G01092716Courtesy of KIA MOTORS AMERICA, INC.
  4. Installation is the reverse of removal.
