Temperature Gauge
- Remove the instrument cluster.
- Check the temperature gauge by changing the resistance between the terminals.

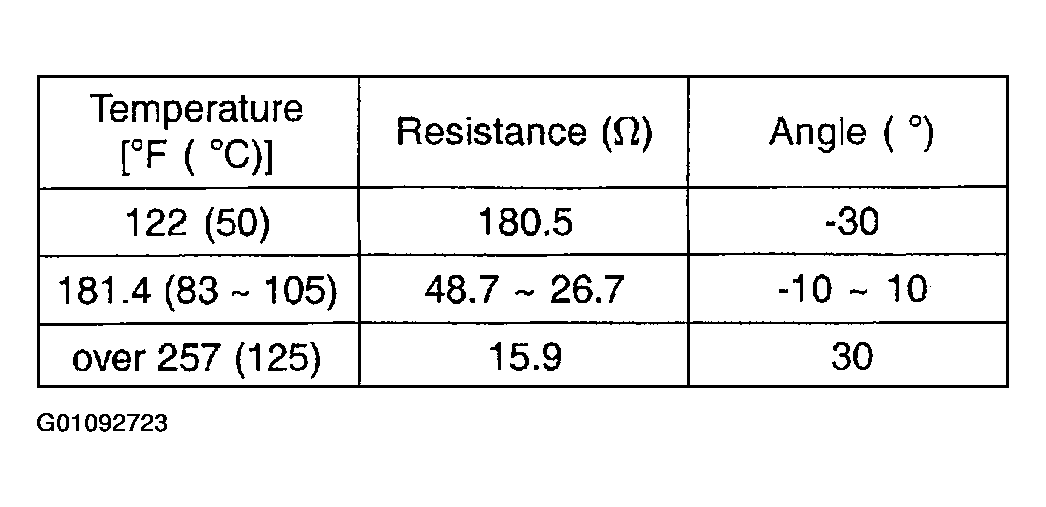

- Apply battery voltage to the terminal 2l, ground the terminal 2h, and connect the resistance to the terminal 2m and then check that the pointer is moved as shown in below table.
