Inspection Of Components: Speedometer

Adjust the pressure of the tires to the specified level.
Drive the vehicle onto a speedometer tester. Use wheel chocks as appropriate.
Check if the speedometer indicator range is within the standard values in the service specifications.
CAUTION: Do not operate the clutch suddenly or increase/decrease speed rapidly while testing.

NOTE: Tire wear and tire over or under inflation will increase the indication error.

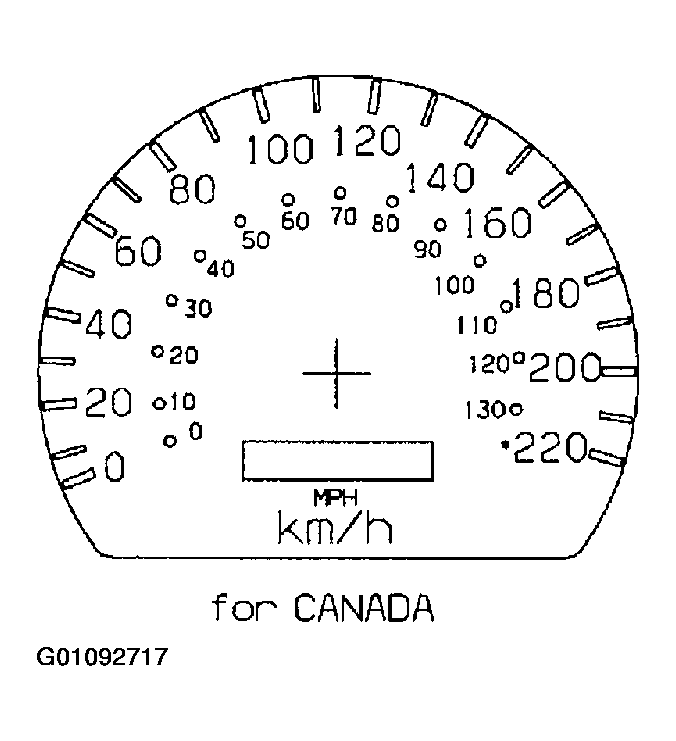

Fig 1: Illustrating Canadian Speedometer Face
Courtesy of KIA MOTORS AMERICA, INC.

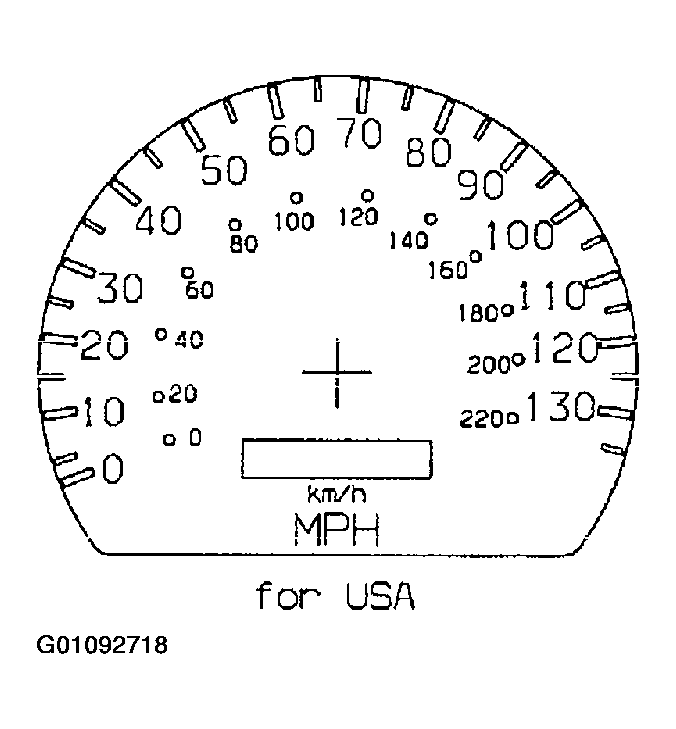

Fig 2: Illustrating USA Speedometer Face
Courtesy of KIA MOTORS AMERICA, INC.
