Instrument Cluster: Component

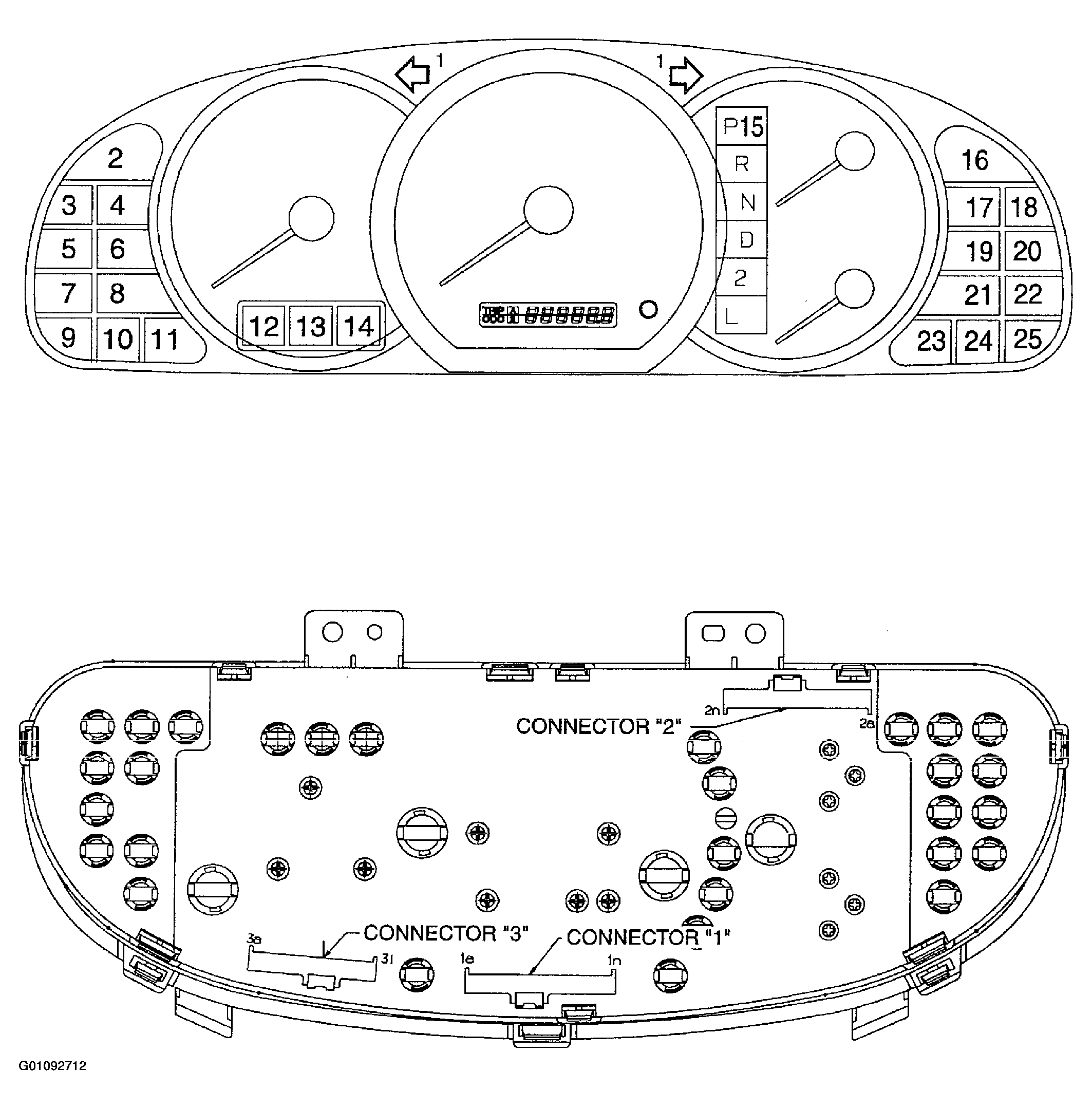

Fig 1: Identifying Instrument Cluster Bulb Locations & Connectors
G01092712Courtesy of KIA MOTORS AMERICA, INC.

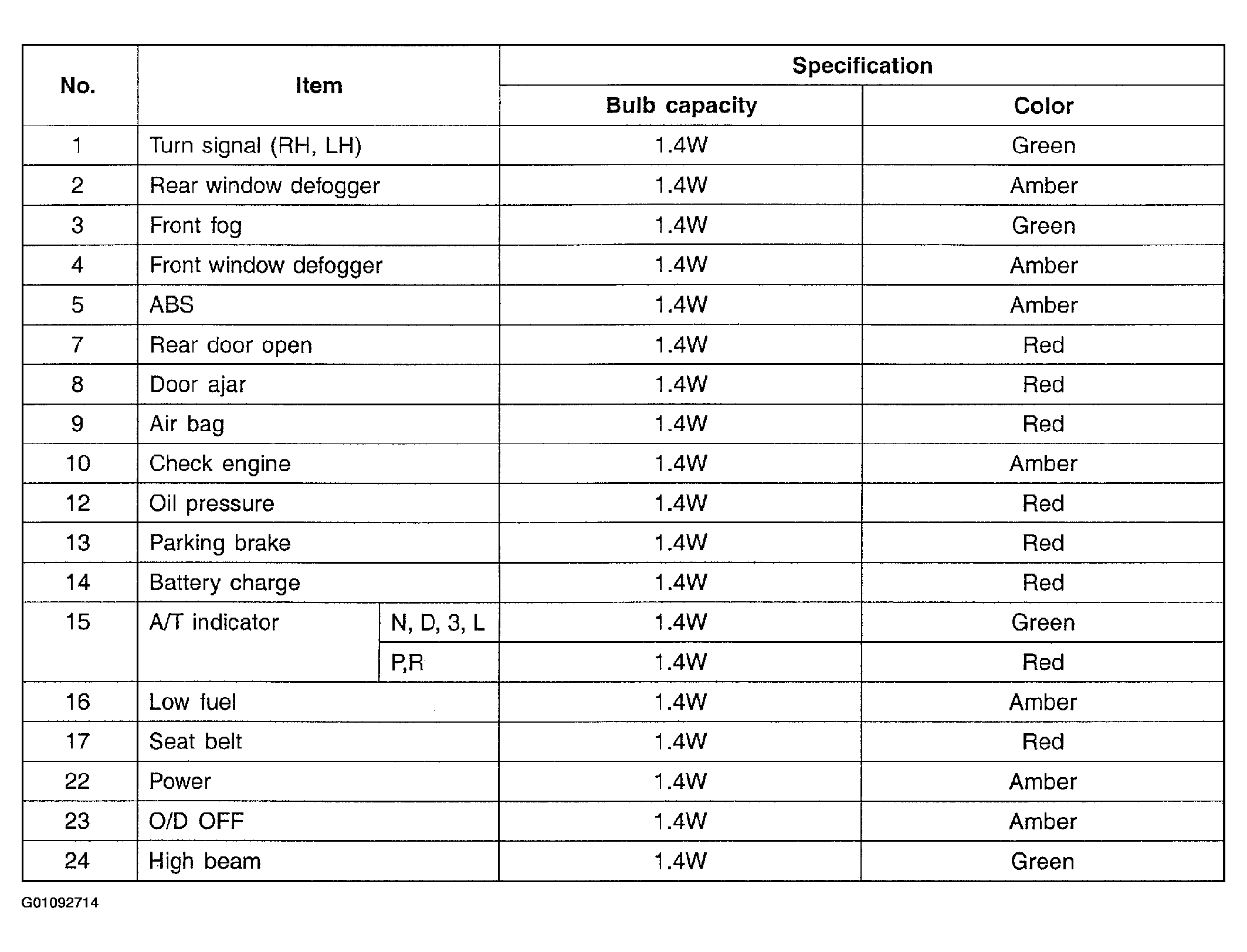

Fig 2: Identifying Instrument Cluster Bulb Specifications
G01092714Courtesy of KIA MOTORS AMERICA, INC.

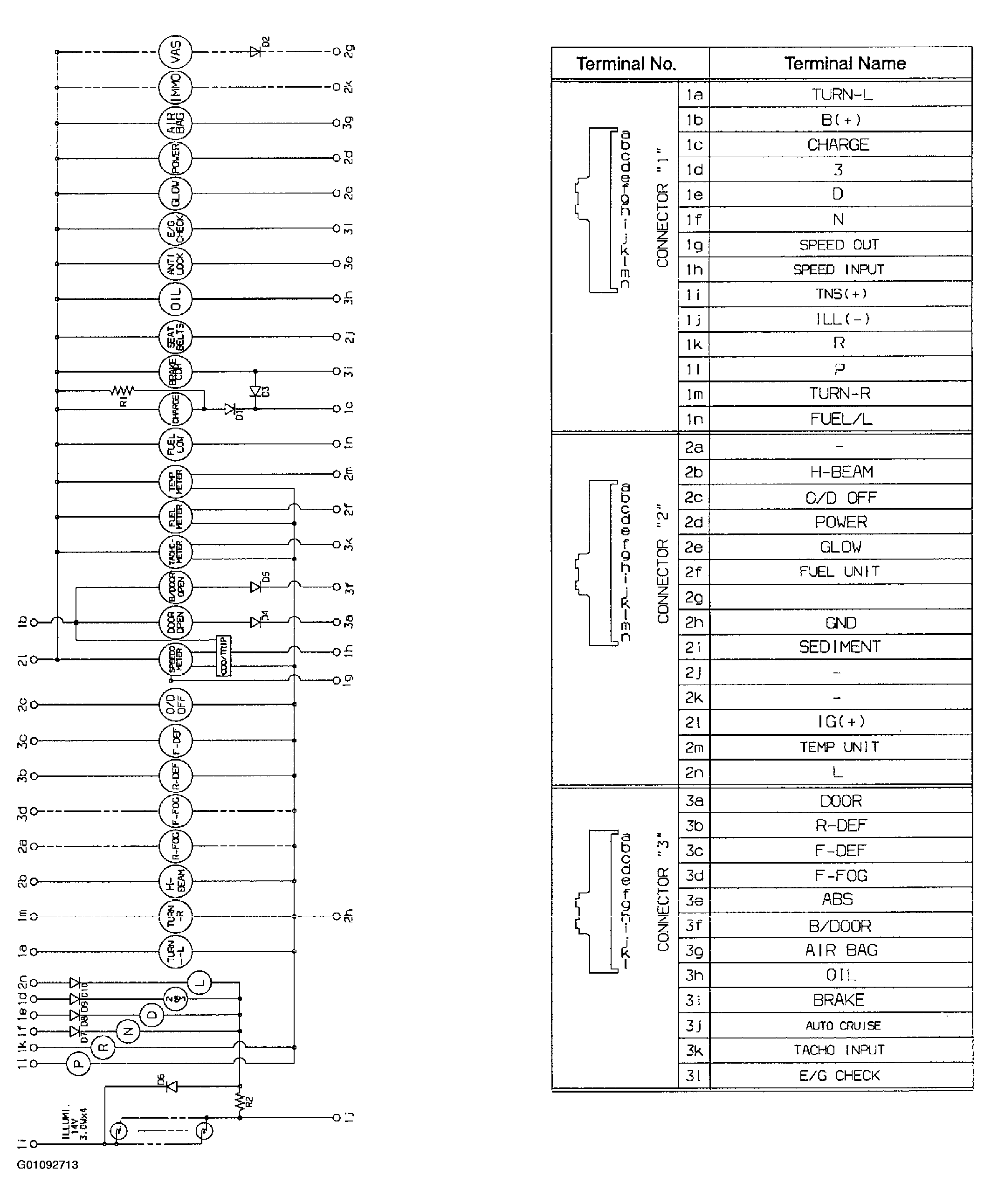

Fig 3: Identifying Instrument Cluster Circuit Diagram
G01092713Courtesy of KIA MOTORS AMERICA, INC.
