Hydraulic Circuit (D Range: O/D Gear Torque Converter Clutch On)

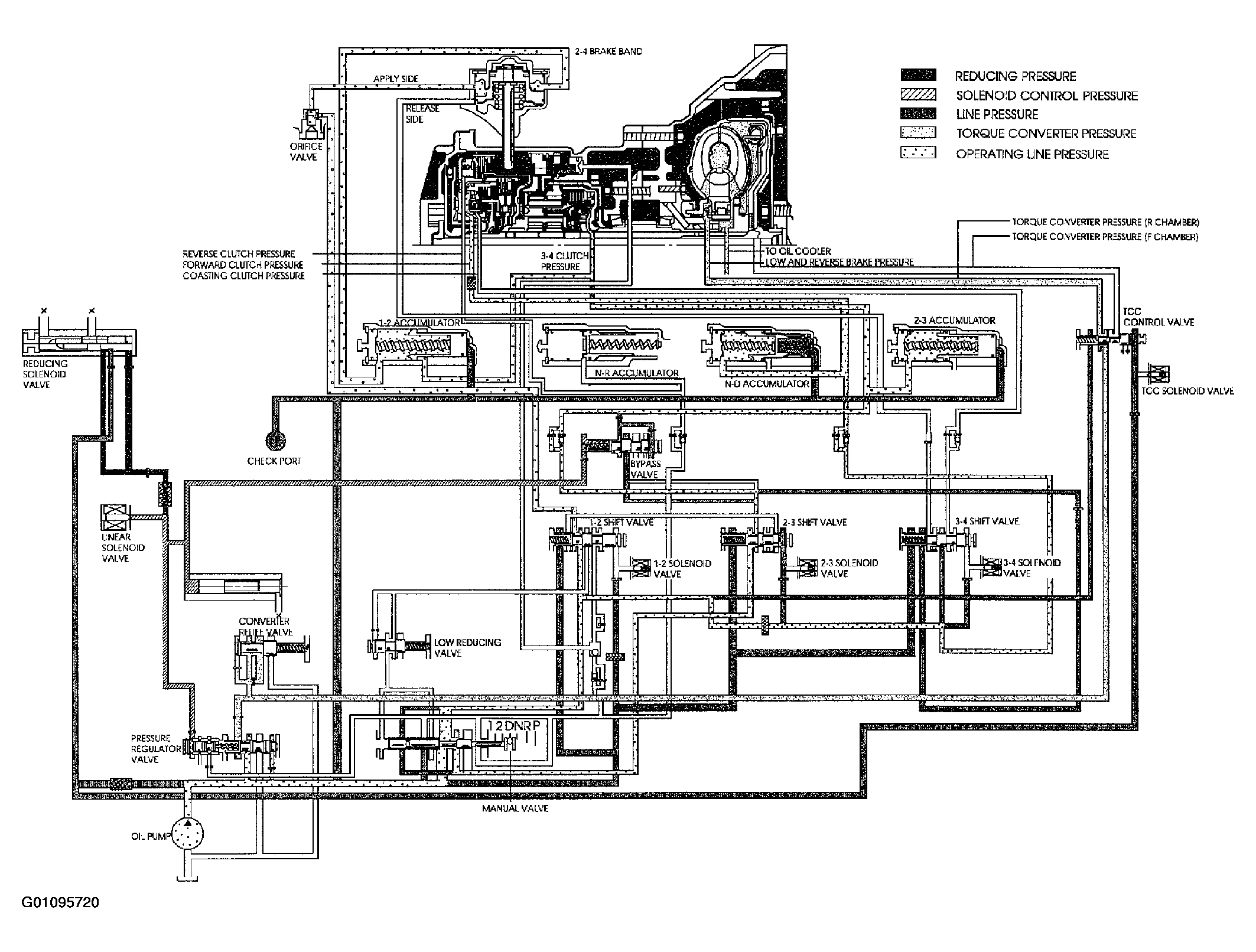

Fig 1: Illustrating Hydraulic Circuit (D Range: O/D Gear Torque Converter Clutch On)

G01095720

Courtesy of KIA MOTORS AMERICA, INC.
