Magnetic Clutch Operation

Connect the compressor terminal to battery (+) and the battery (-) terminal to the compressor body. Verify magnetic clutch operation by a clicking noise.

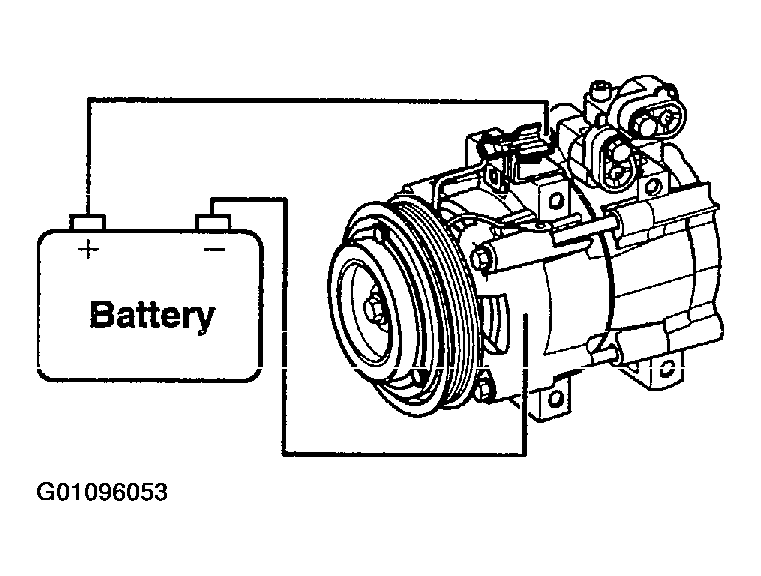

Fig 1: Testing Clutch Operation
G01096053Courtesy of KIA MOTORS AMERICA, INC.
