Brake Pedal Free Play
- With engine off, depress pedal a few times to eliminate vacuum. Depress brake pedal by hand and check pedal free play. Free play should be 0.16-0.28" (4-7 mm). If free play is as specified, no adjustment is necessary.

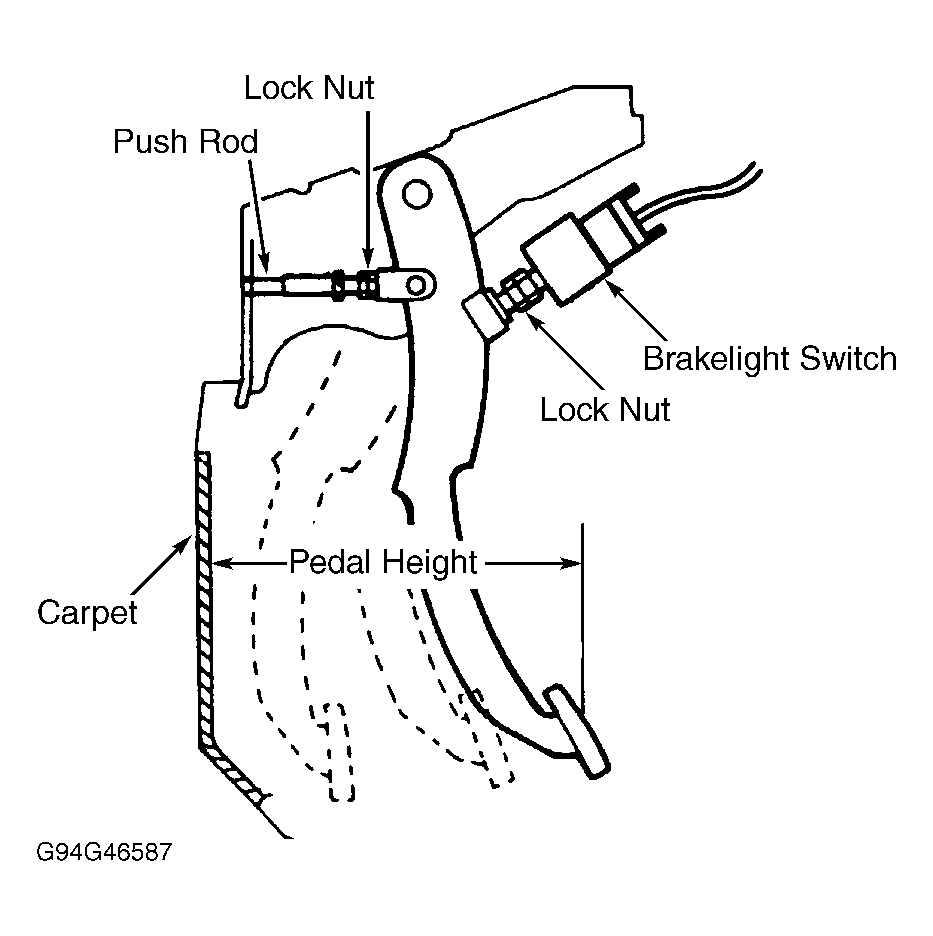

- If free play is not as specified, loosen push rod lock nut. Rotate push rod until correct free play is obtained. Tighten push rod lock nut to specification. See TORQUE SPECIFICATIONS .
