Room Lamp, Door Courtesy Lamp, Trunk Room Lamp, ETACS.

Room Lamp, Door Courtesy Lamp, Trunk Room Lamp, ETACS (Electronic Time and Alarm Control System)

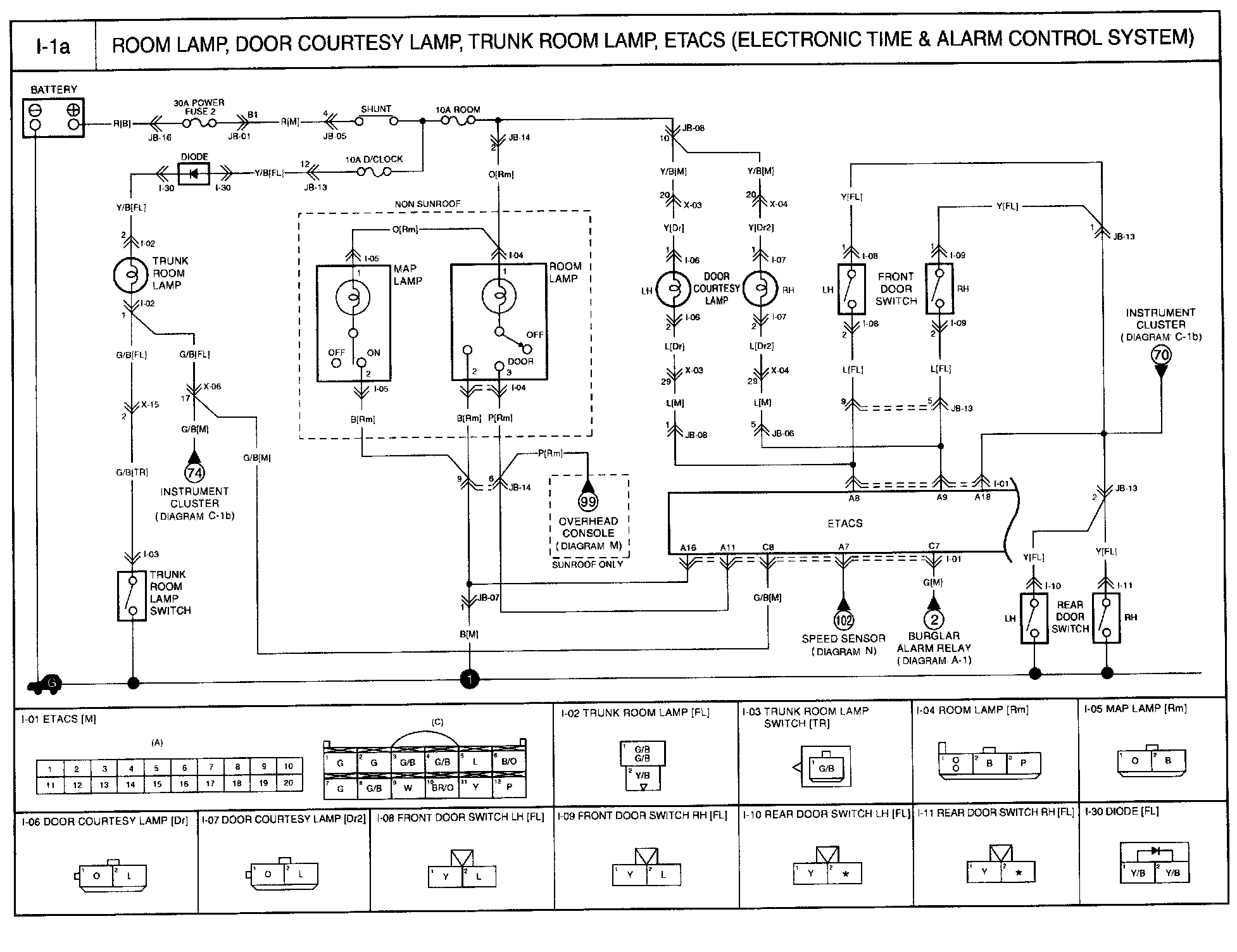

Diagram I-1a:

Routing View I-1a:

Diagrams: Other diagrams referred to by name within these diagrams can be found at Diagrams by Diagram Name. Diagrams By Diagram Name
