Electrical Diagrams

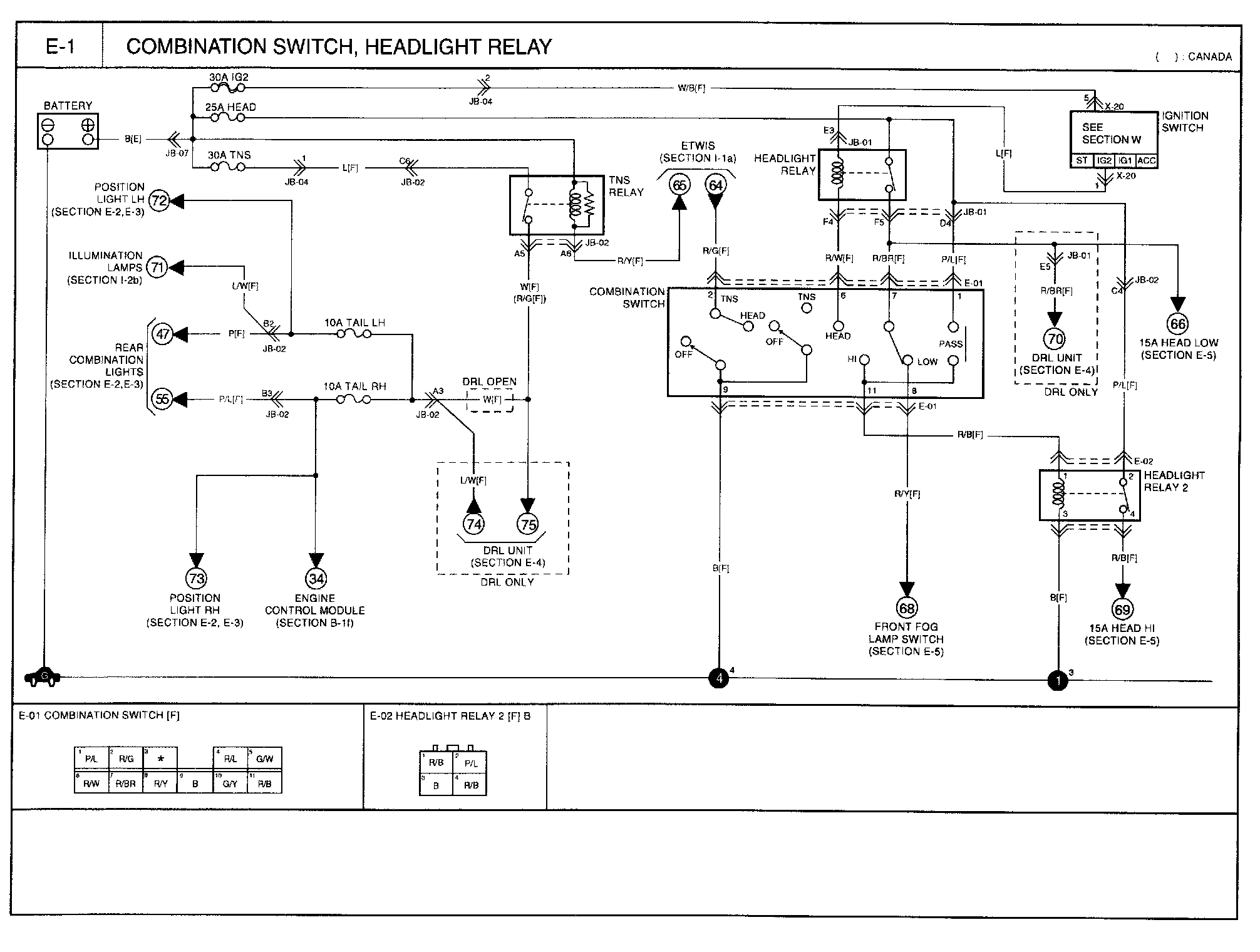

E-1 - Combination Switch, Headlight Relay Circuit:

NOTE: Other diagrams referred to by section number but not shown here can be found at Diagrams by Diagram Section Number. Electrical Diagrams
