Home >> Kia >> 2002 >> Spectra GSX L4-1.8L >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Sections A Thru Z >> I-1a -Electronic Time&Warning Indication Sys(ETWIS),Room Lamps

I-1a -Electronic Time&Warning Indication Sys(ETWIS),Room Lamps

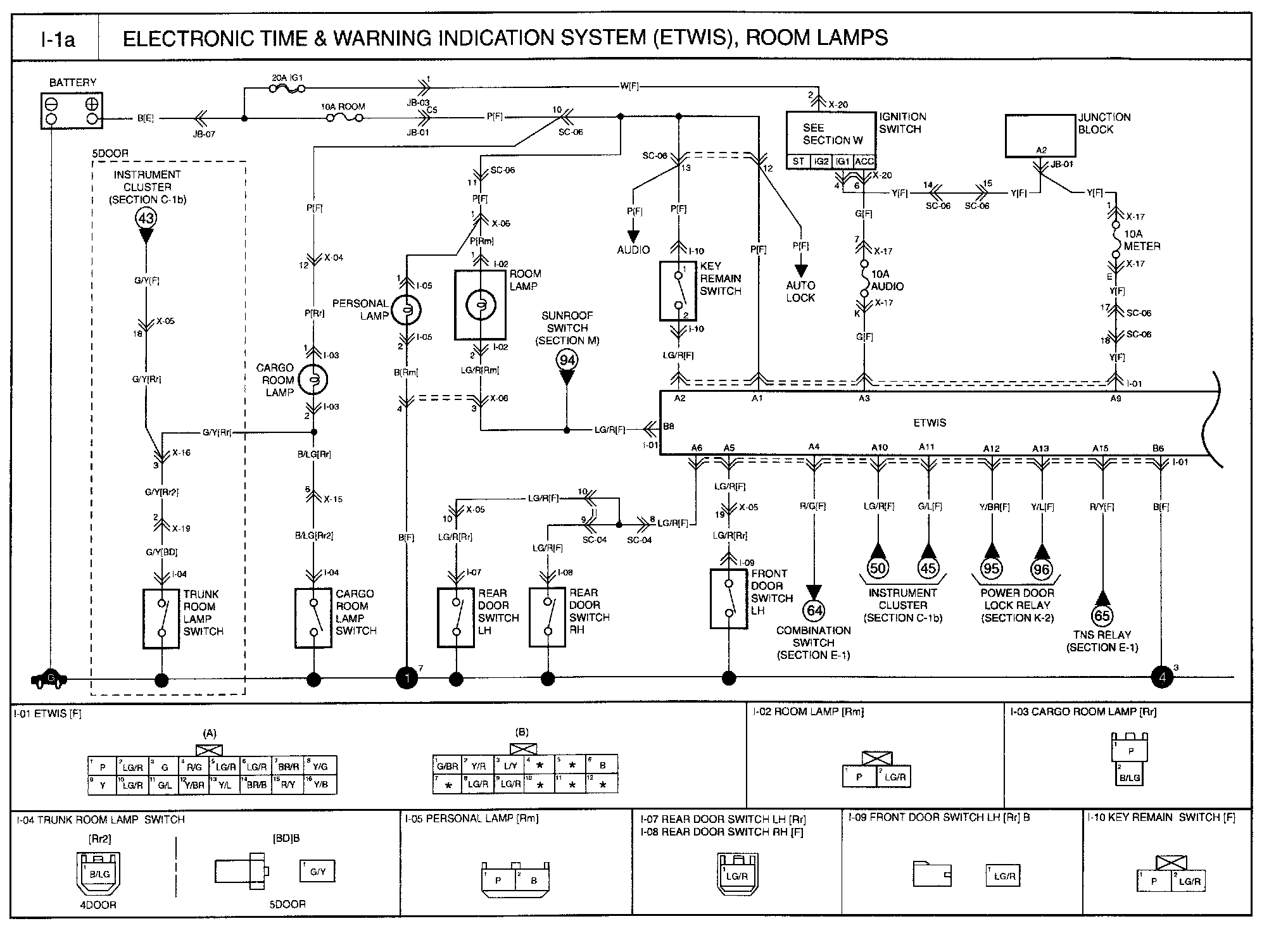

I-1a - Electronic Time & Warning Indication System (ETWIS), Room Lamps Circuit:
