Pedal Stroke: Inspection

  1. Check whether the pedal stroke is in the specification when the parking brake pedal is depressed with 196 N (44 lb, 20 kg).

    Pedal stroke: 3.50-4.33 in (90-110 mm)

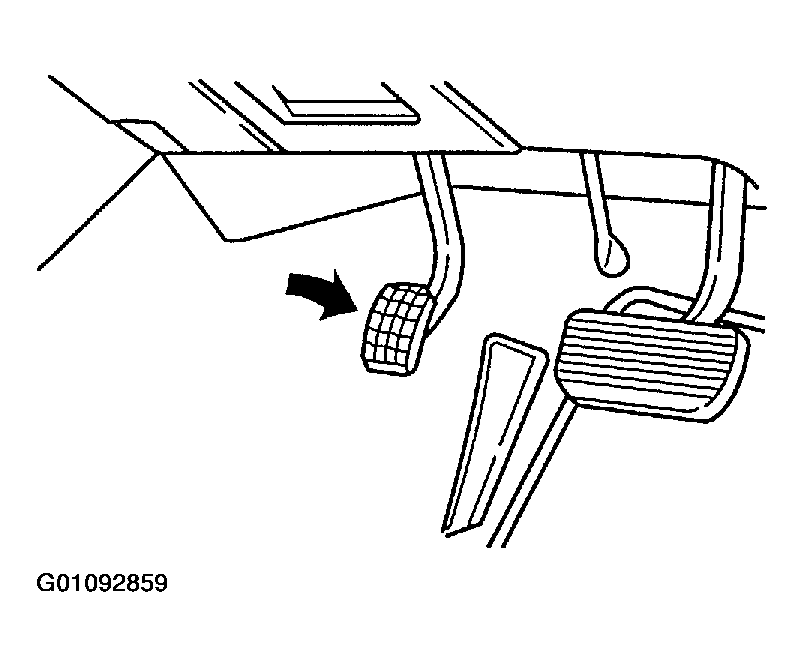

    Fig 1: Testing Parking Brake Pedal Adjustment
    G01092859Courtesy of KIA MOTORS AMERICA, INC.
