Pedal Stroke: Adjustment

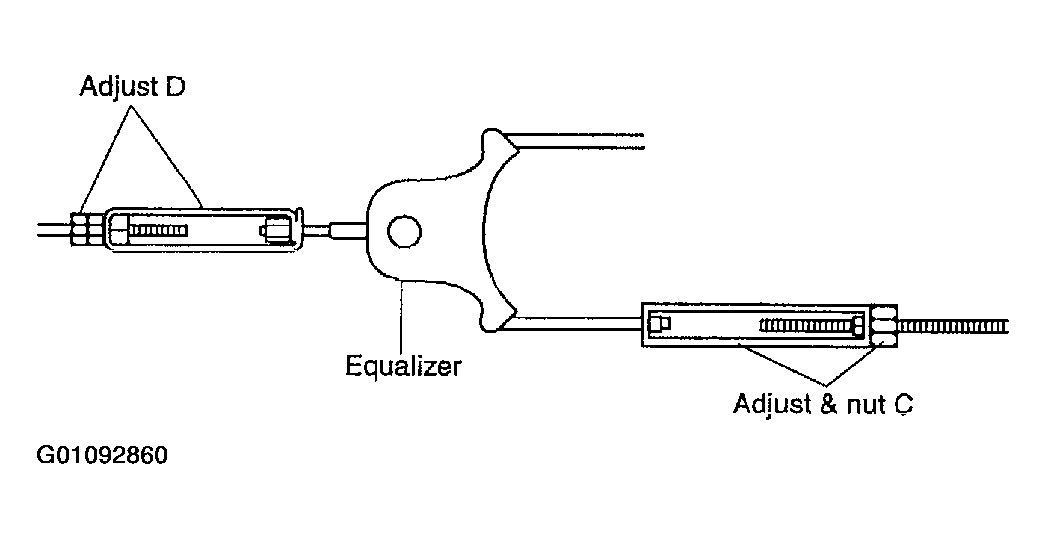

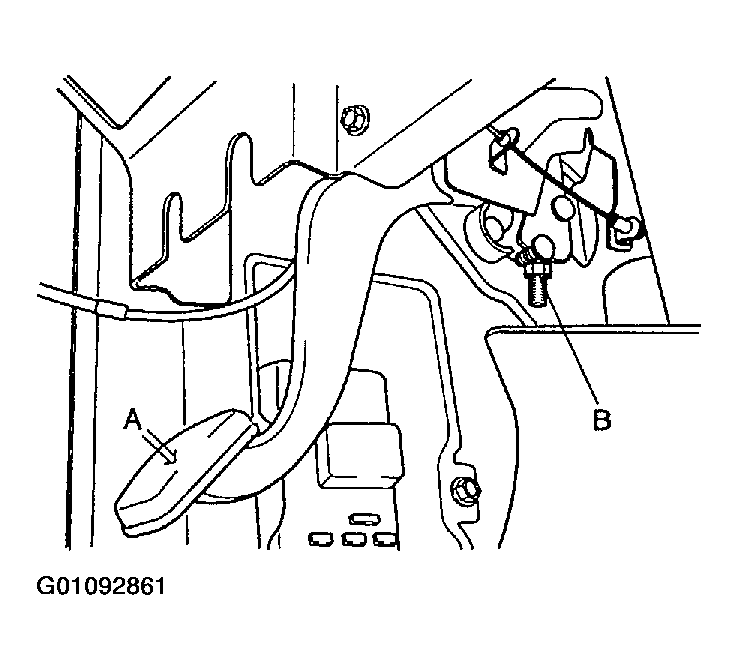

- Adjust the adjust & nut C or the adjust D so that the pedal stroke becomes 3.54-4.33 in (90-110 mm) and then adjust the adjust nut B finally when 196 N (44 lb, 20 kg) is applied on foot parking pedal pad A.
Courtesy of KIA MOTORS AMERICA, INC.
- The stroke shall be free from the dragging when the foot parking pedal is pushed to 1.57 in (40 mm).
Courtesy of KIA MOTORS AMERICA, INC.
NOTE:
- Adjust parking brake pedal stroke and check whether parking brake warning lamp turns on when brake pedal is pushed to 0.78 in (20 mm).
- Check whether the rear wheel is dragged when rear wheel is turned by hands.
- Be careful not to twist the cable during adjusting the adjust nut.
