Home >> Kia >> 2002 >> Sedona EX >> Repair and Diagnosis >> Brakes >> Mechanical - Hydraulic >> Disc & Drum >> Parking Brake System >> Component

Parking Brake System: Component

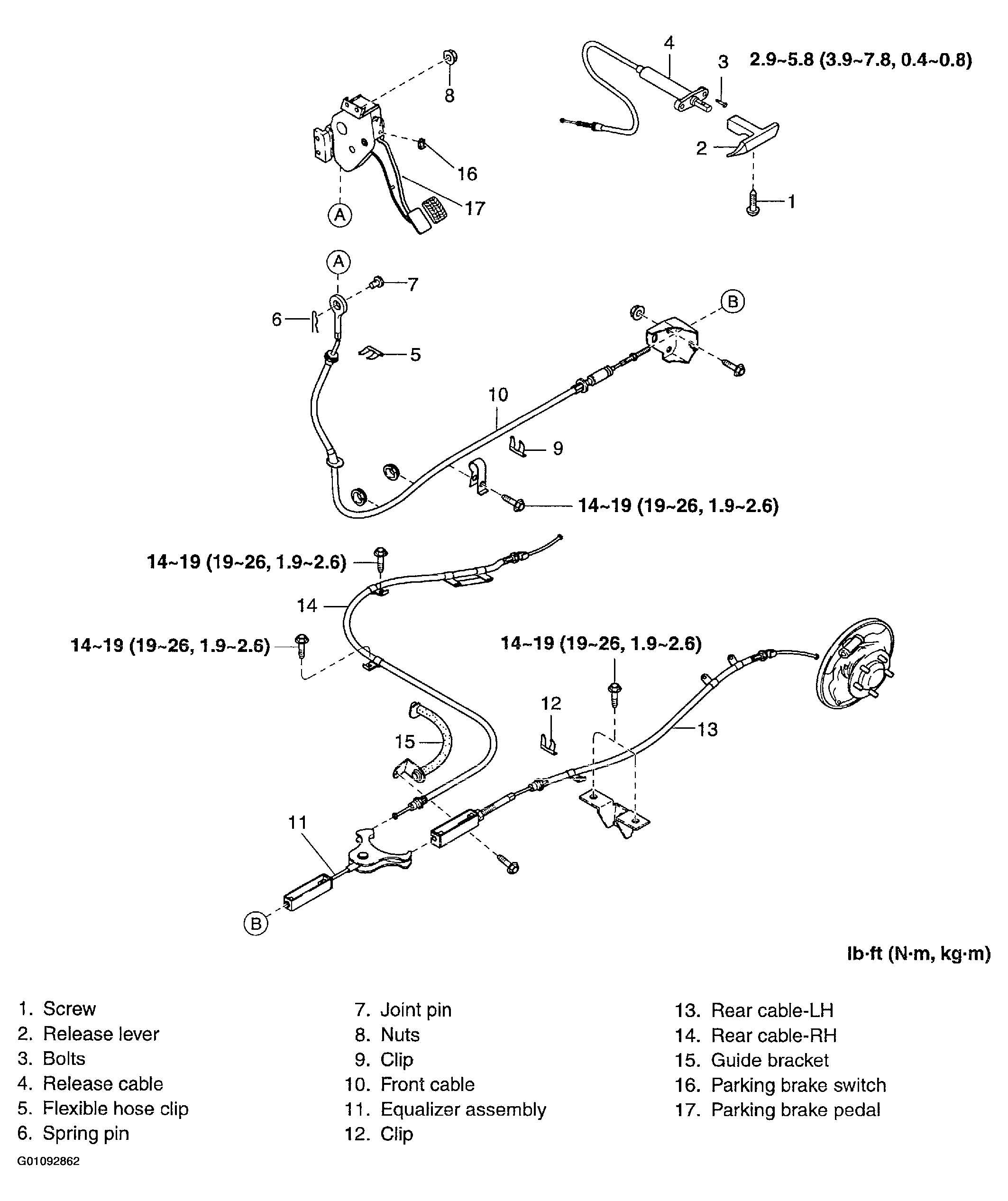

Fig 1: Illustrating Parking Brake Components

G01092862

Courtesy of KIA MOTORS AMERICA, INC.
