Stop Light Switch

  1. Remove the stop light switch.
  2. Connect an ohmmeter to the stop light switch, and check a continuity with depressing the brake pedal.

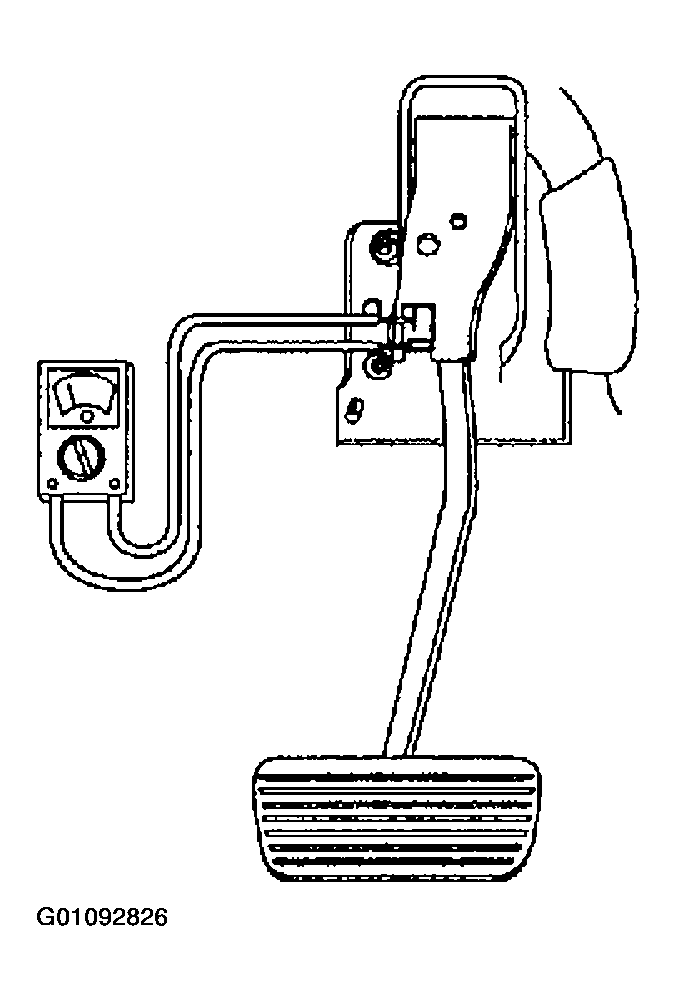

    Fig 1: Testing Stop Light Switch
    G01092826Courtesy of KIA MOTORS AMERICA, INC.
