Home >> Kia >> 2002 >> Sedona EX >> Repair and Diagnosis >> Accessories & Equipment >> Gauges & Instrument Panels >> Component Tests >> Notes

Component Tests: Notes

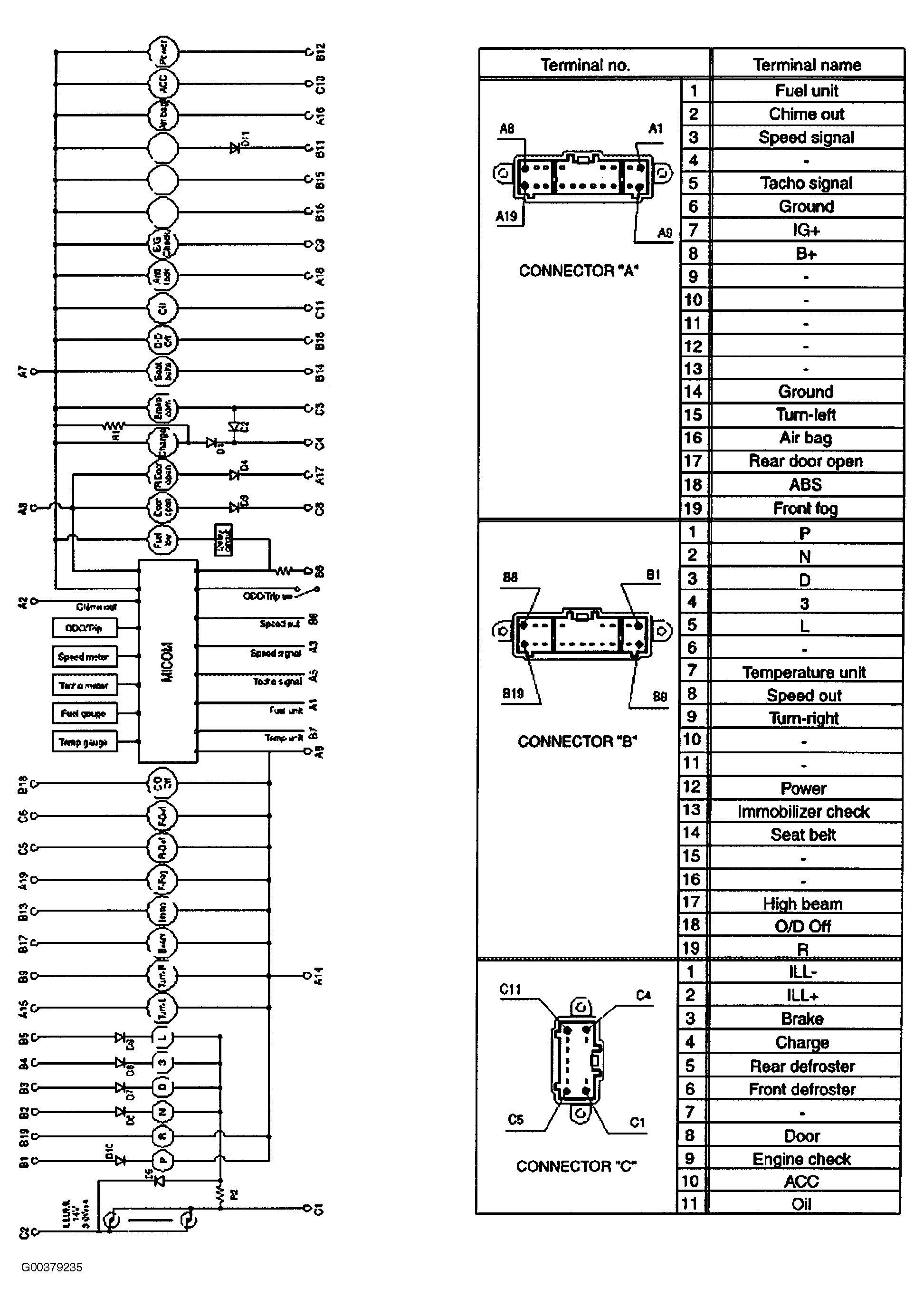

Fig 1: Illustrating Instrument Panel Pinout

G00379235

Courtesy of KIA MOTORS AMERICA, INC.
