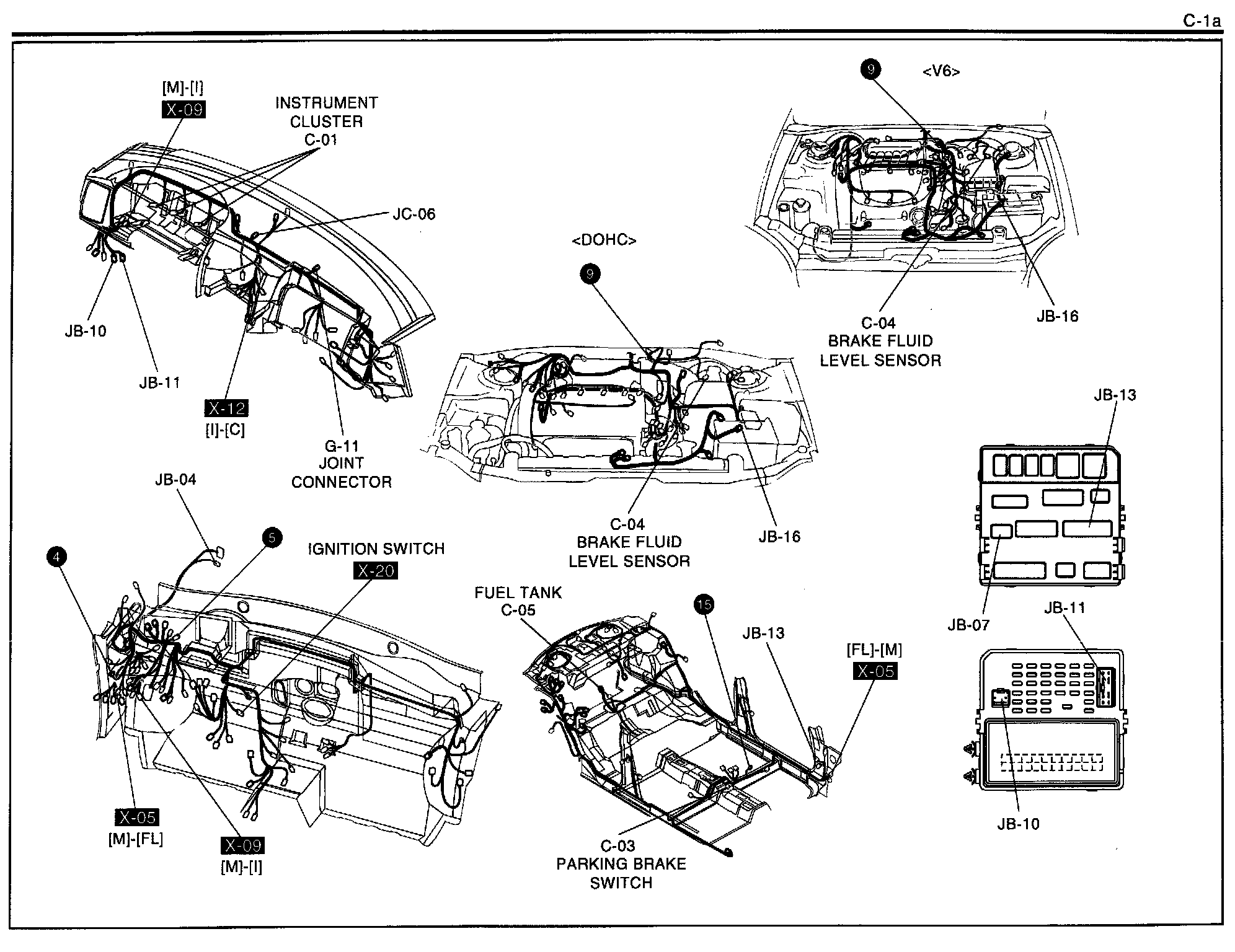

C-1A - Instrument Cluster and Warning Lamps

C-1a - Instrument Cluster & Warning Lamp Harness/Connector Symbols:
