G-2 - Blower and Air Conditioner System (Automatic)
G-2 - Blower and Air Conditioner System (Automatic)

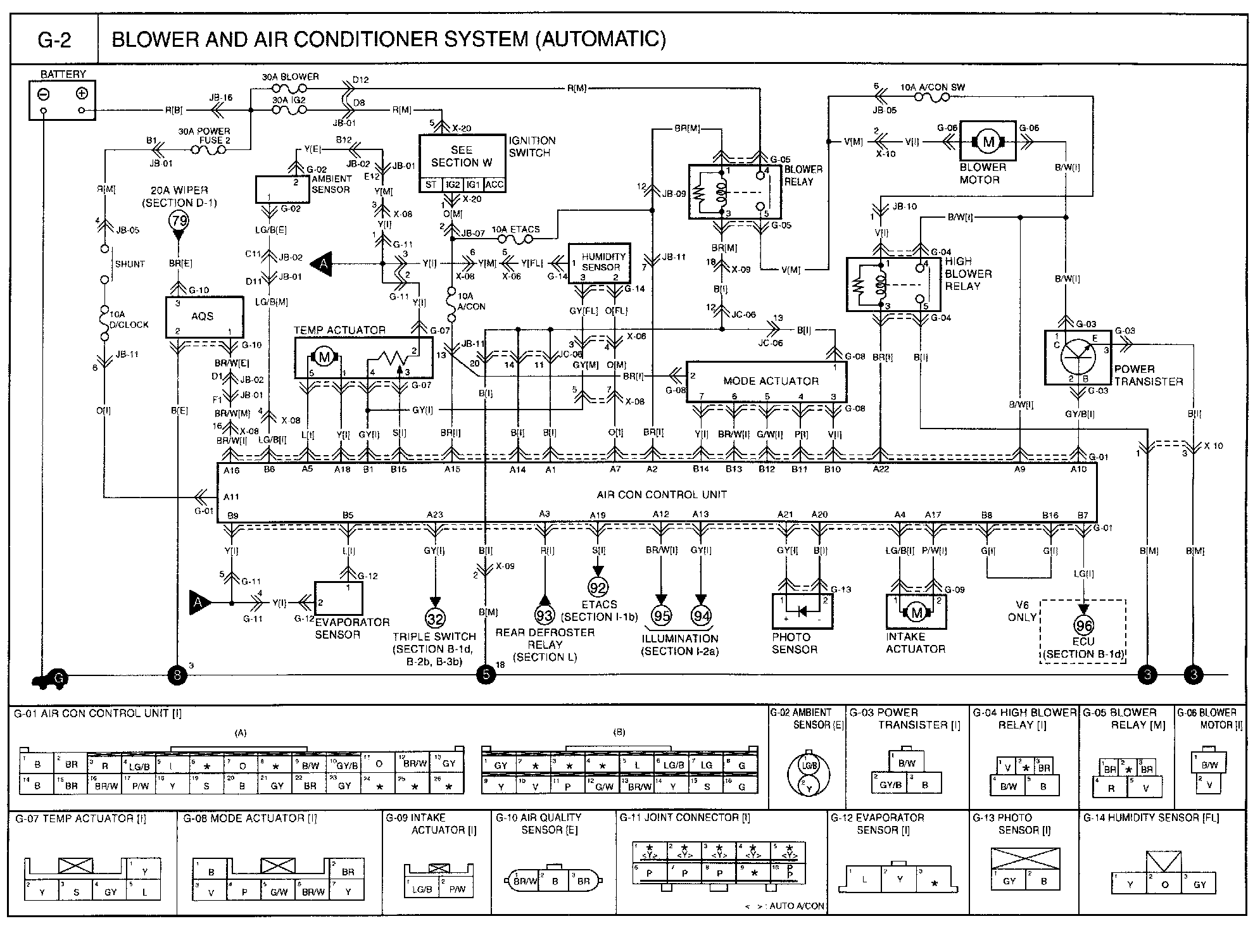

G-2 - Blower And Air Conditioner System (Automatic) Circuit:
