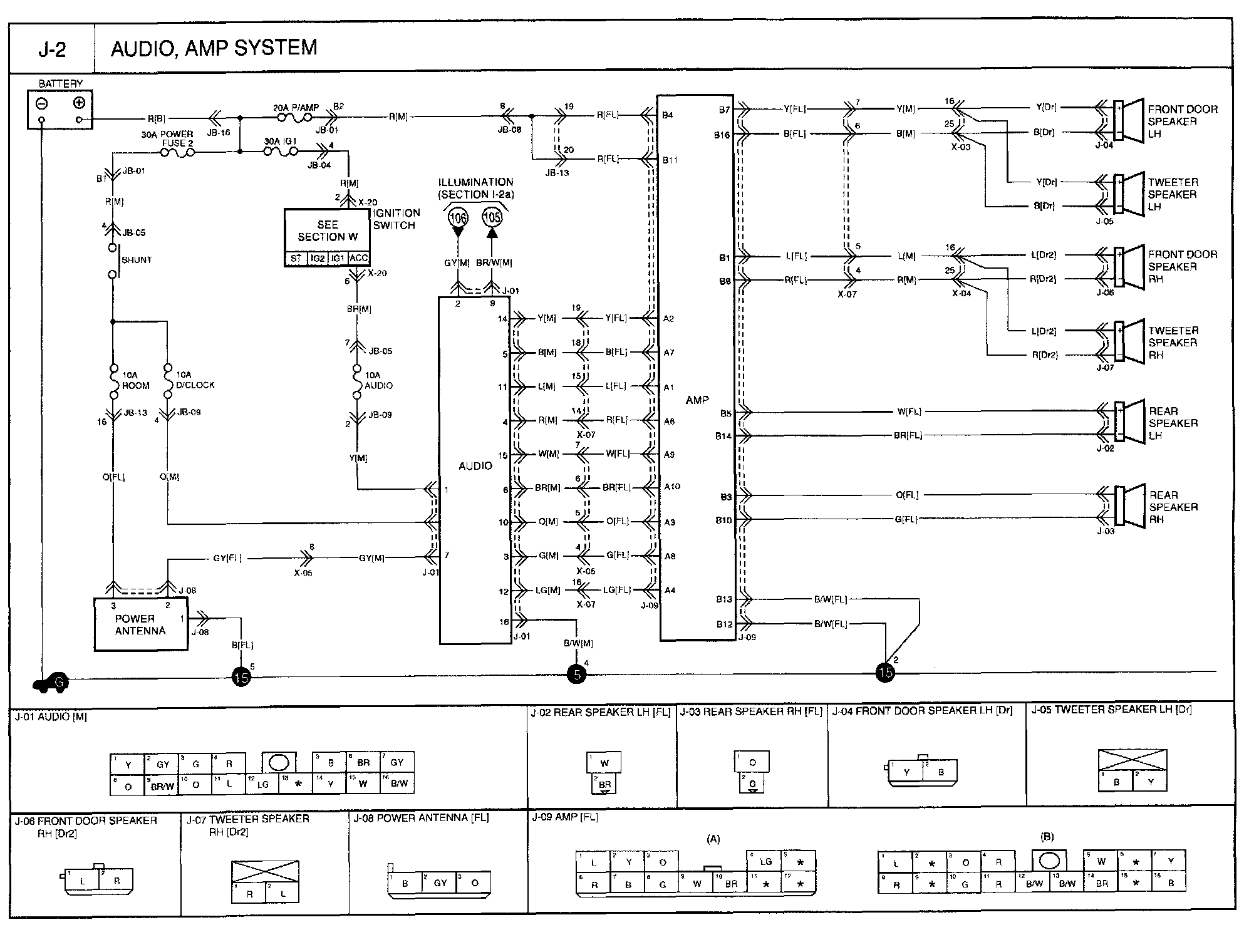

J-2 - Audio, Amp System
J-2 - Audio, Amp System Circuit:
NOTE: Other diagrams referred to by section number but not shown here can be found at Diagrams by Diagram Section Number. Electrical Diagrams
NOTE: Other diagrams referred to by section number but not shown here can be found at Diagrams by Diagram Section Number. Electrical Diagrams
