I-1a - Room Lamp, Door Courtesy, Trunk Room Lamp, ETACS

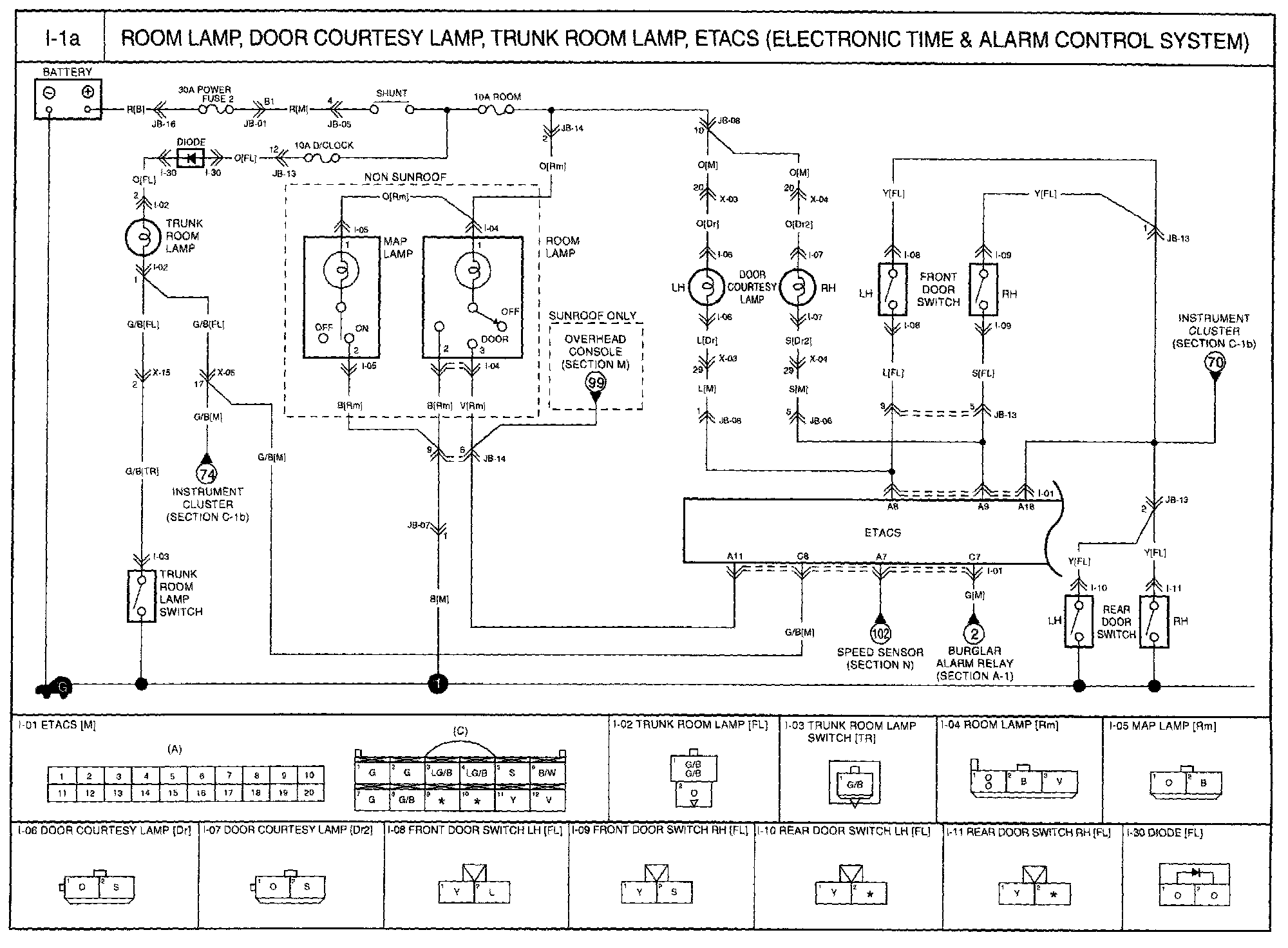

I-1a - Room Lamp, Door Courtesy Lamp, Trunk Room Lamp, ETACS (Electronic Time & Alarm Control System) Circuit:
