G-1 - Blower and Air Conditioner System (Manual)
G-1 - Blower and Air Conditioner System (Manual)

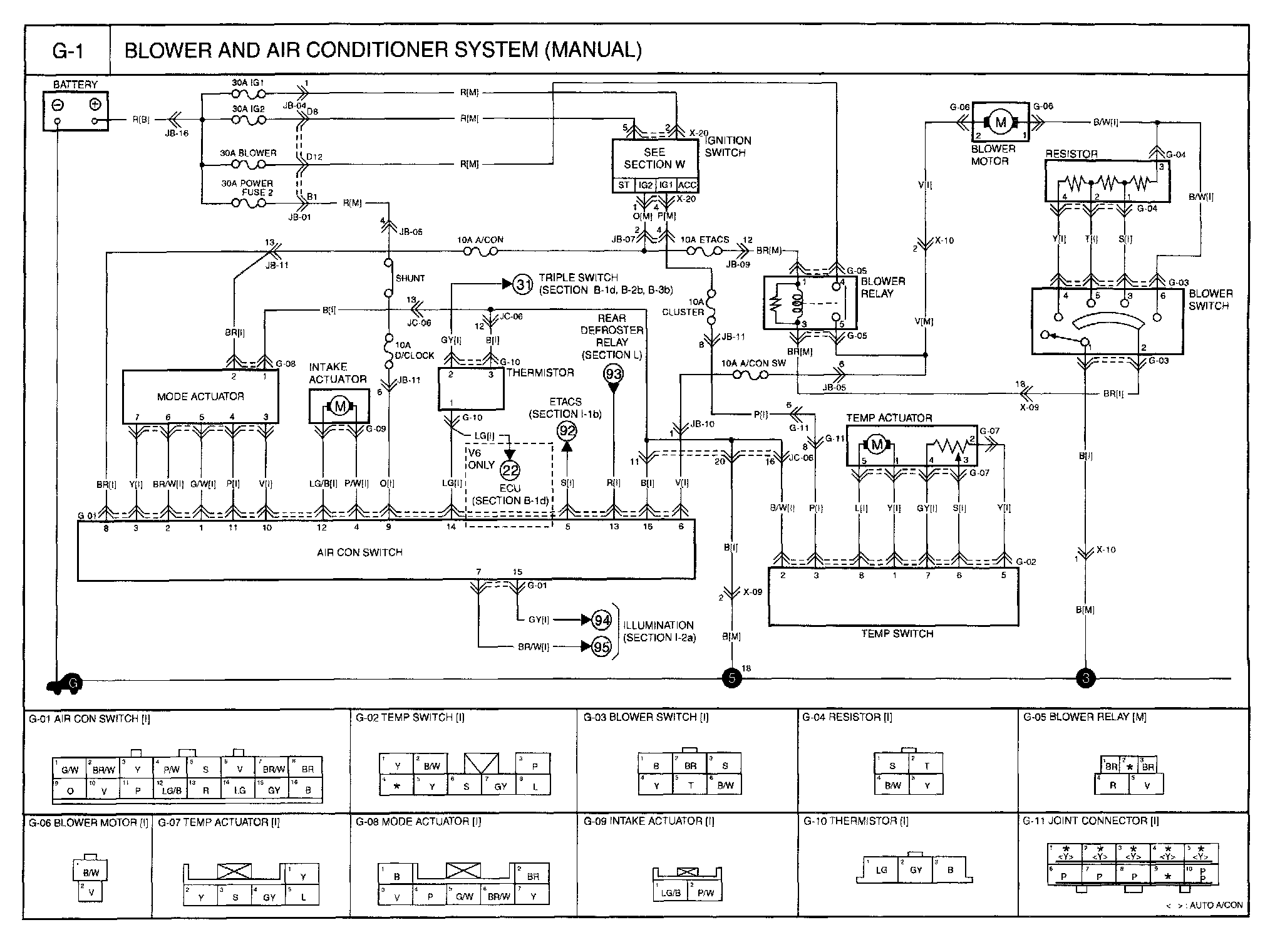

G-1 - Blower And Air Conditioner System (Manual) Circuits:
