J-1 - Audio

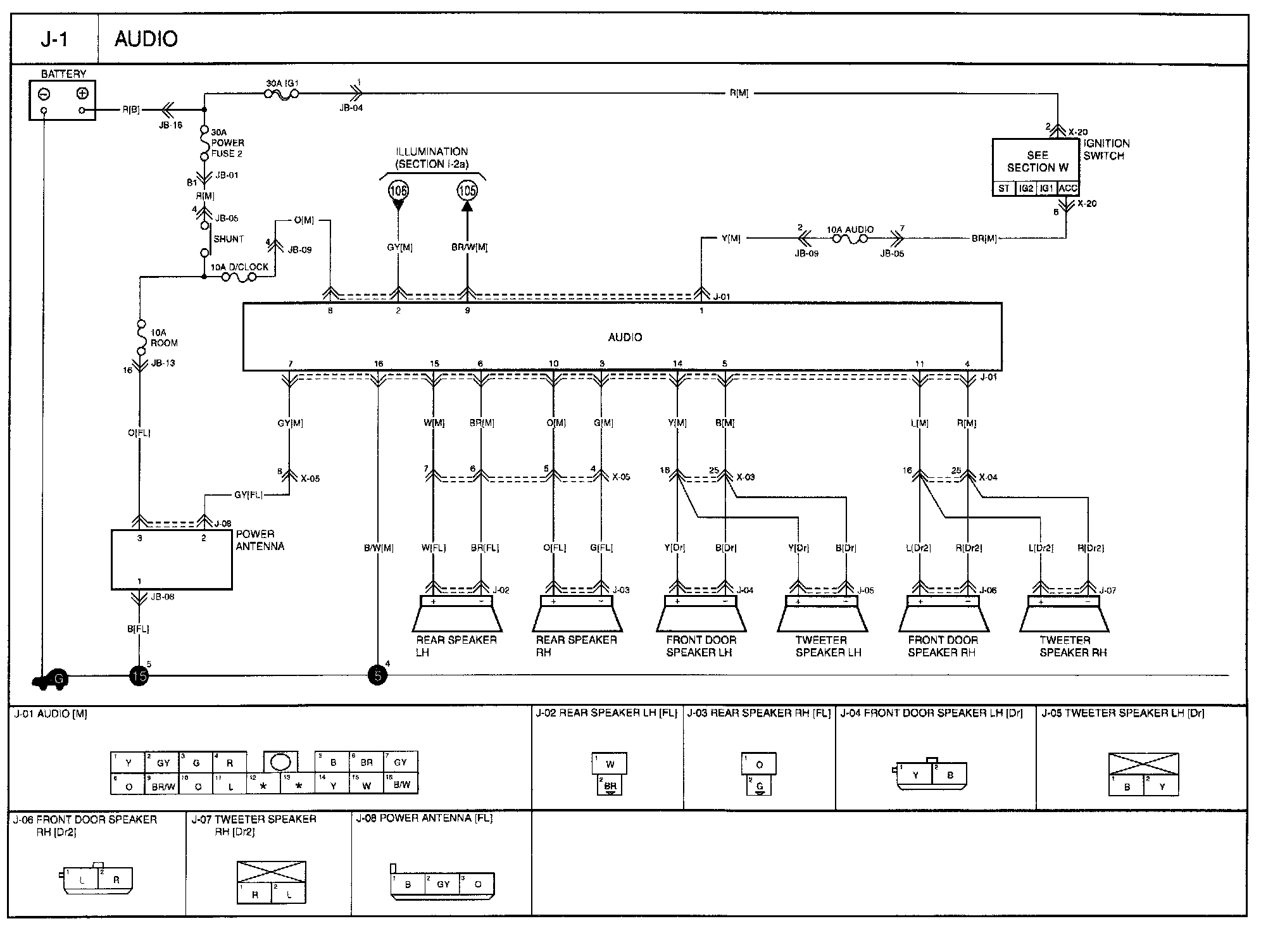

J-1 - Audio Circuit:






NOTE: Other diagrams referred to by section number but not shown here can be found at Diagrams by Diagram Section Number. Electrical Diagrams
