Home >> Kia >> 2001 >> Sephia LS, Automatic >> Repair and Diagnosis >> Brakes >> Mechanical - Hydraulic >> Disc & Drum >> Rear Drum Brake >> Components

Rear Drum Brake: Components

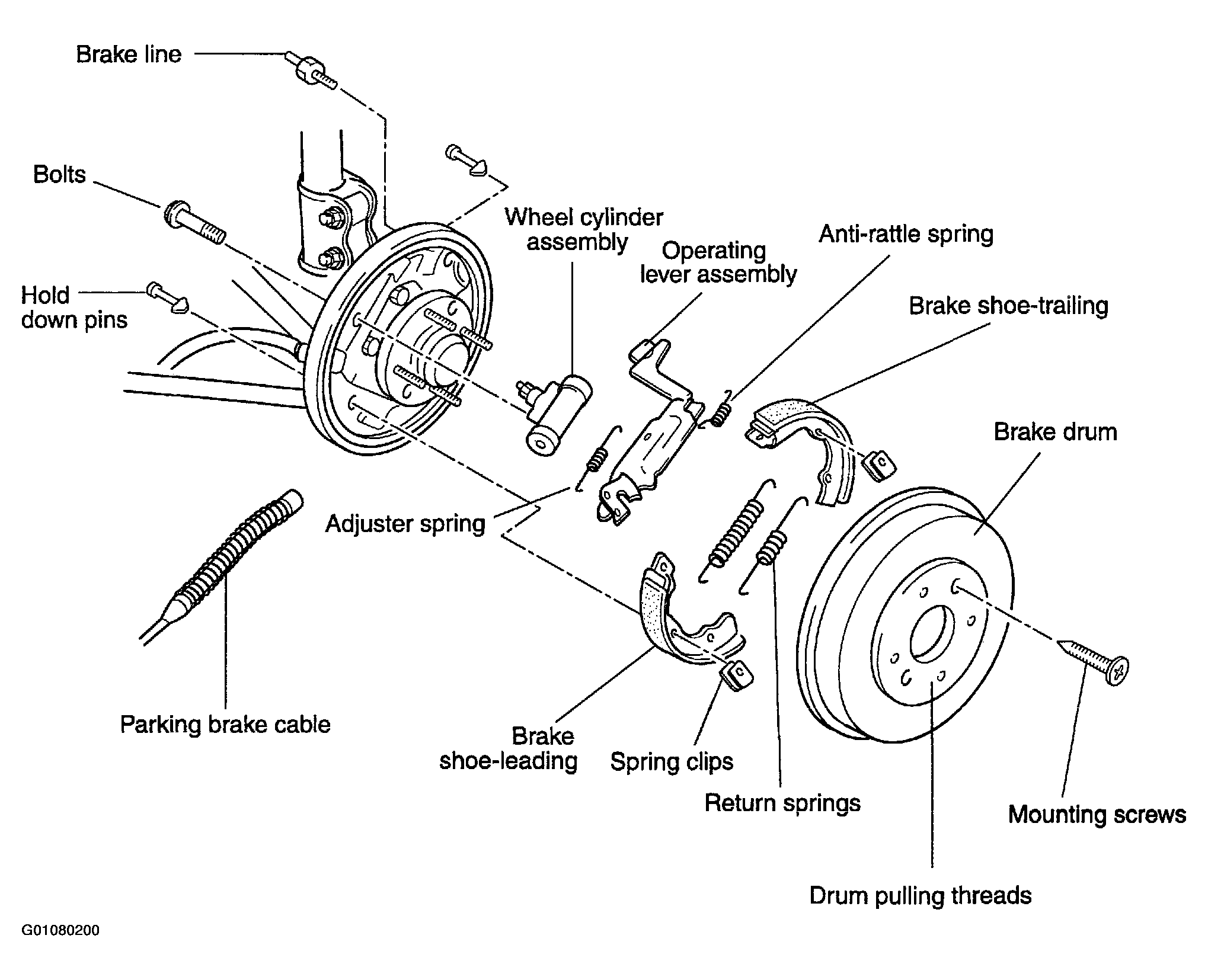

Fig 1: Illustrating Rear Drum Brake Components

G01080200
